Flo King BXL2500 Filtration System
Flo King BXL2500 Filtration System
SKU:FIL-9a7a1d
Efficient Filtration System with 2500 GPH Flow Rate & Low Profile Design
Regular price
$1,619.00
Regular price
Sale price
$1,619.00
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.





The Flo King BXL2500 Filtration System is a versatile solution designed for tanks with limited overhead clearance. With a low profile of just 2" above the tank, it offers a flow rate of 2500 gallons per hour (9500 LPH). Constructed with durable Polypropylene pump materials and featuring a PTFE-covered stainless-steel shaft, this system ensures reliable performance. The motor, rated at 1/3 hp, is epoxy coated and thermally protected for enhanced durability. The BXL2500 comes complete with essential accessories for immediate use, making it an efficient and effective choice for various tank configurations.
Product Specifications
Note Note

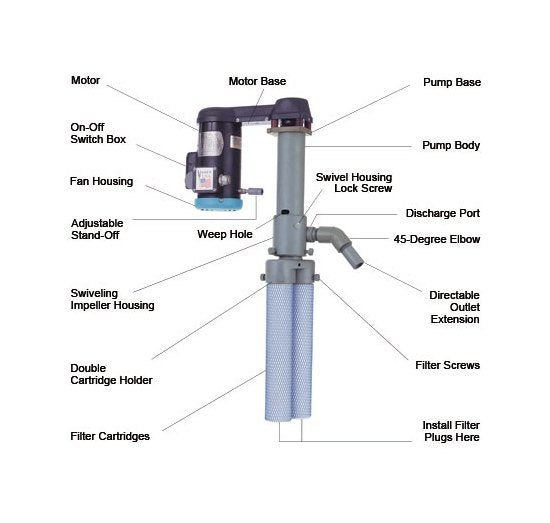

Running Pump Dry Does Not Damage Motor, Pump, Seals or BearingsThe Nut-Style Filter Holder allows you to change filter cartridges without loosening the Filter Screws on the Flo King pump. Just unscrew Threaded Nut from bottom of Stem, remove old cartridge, install new cartridge, tighten Nut and resume filtration.

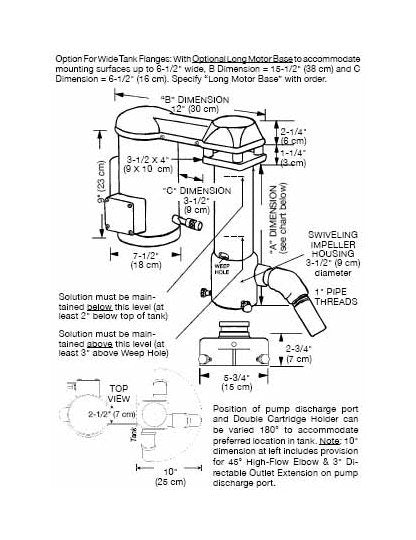

Specifications Dimension A
10-3/4 " | 28 cm
Specifications Flow Rate
2500 gallons per hour (9500 liters per hour) at 60 Hz
Specifications Motor Features
Epoxy coated, TEFC, Thermally Protected
Specifications Motor Power
1/3 hp | 250 W
Specifications Motor Rating
120 V, 6.0 A, 50/60 Hz, 2850 rpm | 240 V, 3.0 A, 50/60 Hz, 3450 rpm
Specifications Optional Filter Holder
NFH10 Nut-Style, 10" Length | NFH15 Nut-Style, 15" Length | NFH20 Nut-Style, 20" Length
Specifications Other Options

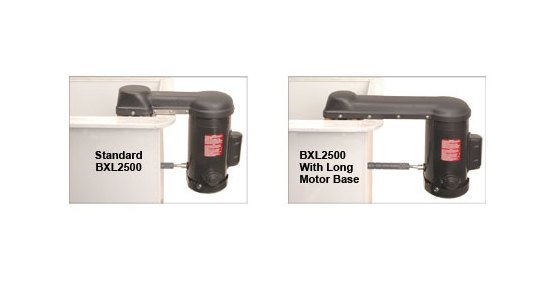

Optional Long Motor Base
Specifications Phase
Single
Specifications Pressure
27 feet (8.2 meters) of head pressure
Specifications Price
1619.00 USD
Specifications Pump Materials Of Construction
Polypropylene
Specifications Shaft Material
PTFE-covered 303 stainless-steel (Standard)
Specifications Weight
25.0 lbs | 11.0 kg
