Flo King BXL2500 Filtration System
Flo King BXL2500 Filtration System
SKU:FIL-897bb8
Efficient and space-saving, the Flo King BXL2500 Filtration System ensures optimal performance in limited overhead spaces with a flow rate of 2500 GPH. Durable materials, versatile mounting options, and complete accessories included. Improve your industrial filtration process now!
Regular price
$1,707.00
Regular price
Sale price
$1,707.00
Unit price
per
Initiate Order
Flo King BXL2500 Filtration System
$1,707.00
Quantity: 1
Claim Your Seller Account
Flo King BXL2500 Filtration System
$1,707.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

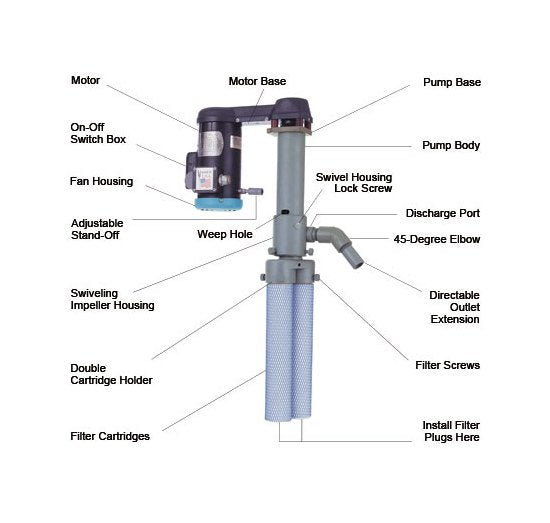

The Flo King BXL2500 Filtration System is a low-profile, high-performance solution designed for environments with limited overhead space. With a flow rate of 2500 gallons per hour, this system offers efficient filtration for various tank configurations. Constructed with durable materials like polypropylene and PTFE-covered stainless steel, it ensures reliability and longevity. The motor's features include epoxy coating, TEFC enclosure, and thermal protection for extended functionality. Optional accessories like the Long Motor Base provide flexibility for mounting on different surfaces. This system comes complete with a double cartridge holder, reusable filter cartridges, adjustable tank clamp, and more, making it a versatile choice for industrial applications.
Product Specifications
Note Note
Running Pump Dry Does Not Damage Motor, Pump, Seals or BearingsThe Nut-Style Filter Holder allows you to change filter cartridges without loosening the Filter Screws on the Flo King pump. Just unscrew Threaded Nut from bottom of Stem, remove old cartridge, install new cartridge, tighten Nut and resume filtration.

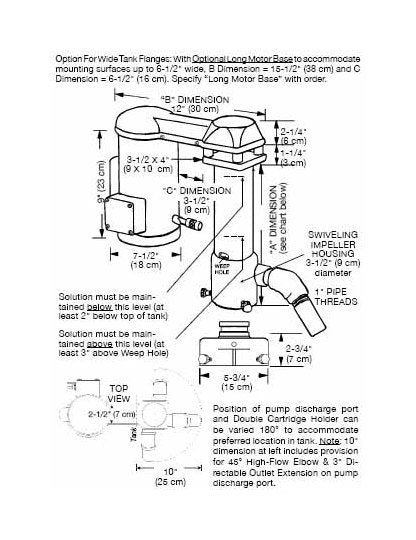

Specifications Dimension A
16-3/4 " | 43 cm
Specifications Flow Rate
2500 gallons per hour (9500 liters per hour) at 60 Hz
Specifications Motor Features
Epoxy coated, TEFC, Thermally Protected
Specifications Motor Power
1/3 hp | 250 W
Specifications Motor Rating
120 V, 6.0 A, 50/60 Hz, 2850 rpm | 240 V, 3.0 A, 50/60 Hz, 3450 rpm
Specifications Optional Filter Holder
NFH10 Nut-Style, 10" Length | NFH15 Nut-Style, 15" Length | NFH20 Nut-Style, 20" Length
Specifications Other Options

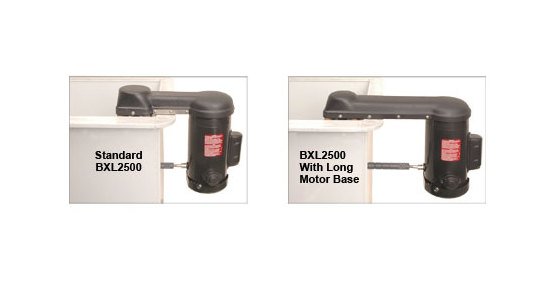

Optional Long Motor Base
Specifications Phase
Single
Specifications Pressure
27 feet (8.2 meters) of head pressure
Specifications Price
1707.00 USD
Specifications Pump Materials Of Construction
Polypropylene
Specifications Shaft Material
PTFE-covered 303 stainless-steel (Standard)
Specifications Weight
25.0 lbs | 11.0 kg
