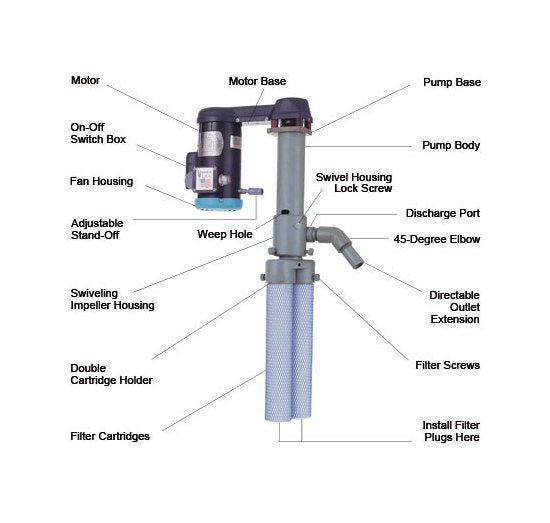

The Flo King BXL2500 In-Tank Filter System is a compact solution designed for tanks with limited overhead clearance, featuring a low profile design of just 2 inches. With a flow rate of 2500 gallons per hour, this filtration system is equipped with a polypropylene pump, PTFE-covered stainless-steel shaft, and a powerful, energy-efficient motor. The BXL2500 comes complete with essential accessories including double cartridge holder, outlet extension, reusable filter cartridges, and tank clamp, ensuring easy installation and operation. Ideal for metal finishing solutions, this system offers versatility with multiple body lengths and optional long motor base for customized installations.
Product Specifications
Note Note
Running Pump Dry Does Not Damage Motor, Pump, Seals or BearingsThe Nut-Style Filter Holder allows you to change filter cartridges without loosening the Filter Screws on the Flo King pump. Just unscrew Threaded Nut from bottom of Stem, remove old cartridge, install new cartridge, tighten Nut and resume filtration.

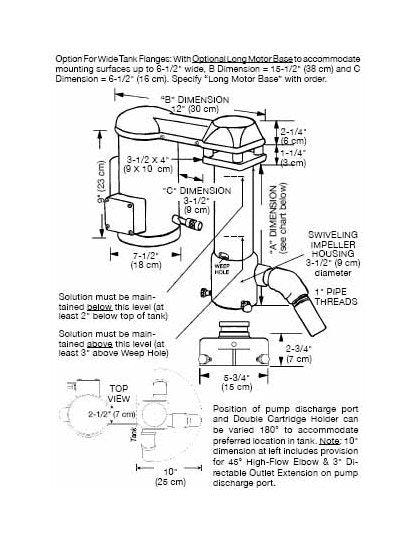

Specifications Dimension A
14-3/4 " | 38 cm
Specifications Flow Rate
2500 gallons per hour (9500 liters per hour) at 60 Hz
Specifications Motor Features
Epoxy coated, TEFC, Thermally Protected
Specifications Motor Power
1/3 hp | 250 W
Specifications Motor Rating
120 V, 6.0 A, 50/60 Hz, 2850 rpm | 240 V, 3.0 A, 50/60 Hz, 3450 rpm
Specifications Optional Filter Holder
NFH10 Nut-Style, 10" Length | NFH15 Nut-Style, 15" Length | NFH20 Nut-Style, 20" Length
Specifications Other Options

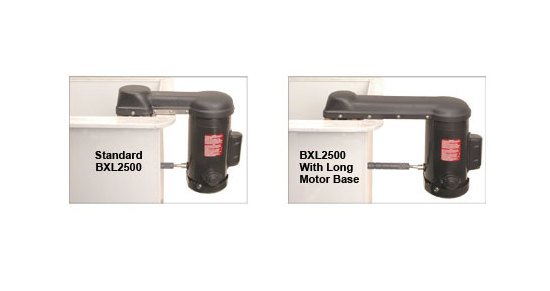

Optional Long Motor Base
Specifications Phase
Single
Specifications Pressure
27 feet (8.2 meters) of head pressure
Specifications Price
1661.00 USD
Specifications Pump Materials Of Construction
Polypropylene
Specifications Shaft Material
PTFE-covered 303 stainless-steel (Standard)
Specifications Weight
25.0 lbs | 11.0 kg
