Flo King BXL2500 Low-Profile Filtration System
Flo King BXL2500 Low-Profile Filtration System
SKU:FIL-98f01a
Flo King BXL2500: Low-profile solution for tanks with limited overhead space. Offers 2500 GPH flow rate, durability, and flexibility for industrial filtration needs.
Regular price
$1,638.00
Regular price
Sale price
$1,638.00
Unit price
per
Initiate Order
Flo King BXL2500 Low-Profile Filtration System
$1,638.00
Quantity: 1
Claim Your Seller Account
Flo King BXL2500 Low-Profile Filtration System
$1,638.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

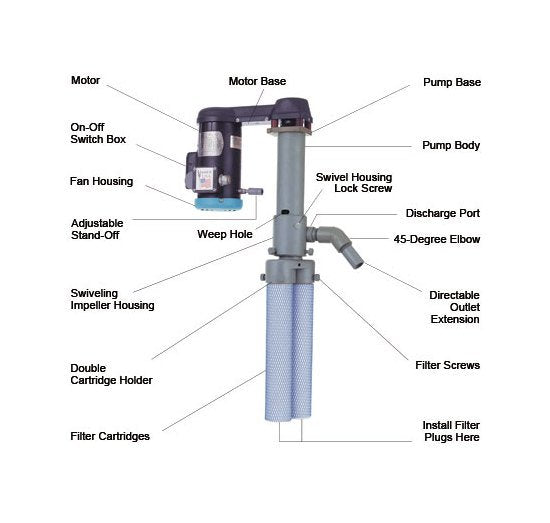

The Flo King BXL2500 Low-Profile Filtration System is designed for tanks with limited overhead clearance, featuring a flow rate of 2500 gallons per hour. With pump materials of construction including polypropylene and a PTFE-covered stainless-steel shaft, this system is durable and reliable for industrial applications. The motor, rated at 1/3 hp, operates at 120V or 240V and is epoxy coated, TEFC, and thermally protected. Equipped with multiple body lengths and filter cartridge options, it offers flexibility for various tank configurations. Ensure proper priming and optimal performance with the Flo King BXL2500 system.
Product Specifications
Note Note
Running Pump Dry Does Not Damage Motor, Pump, Seals or BearingsThe Nut-Style Filter Holder allows you to change filter cartridges without loosening the Filter Screws on the Flo King pump. Just unscrew Threaded Nut from bottom of Stem, remove old cartridge, install new cartridge, tighten Nut and resume filtration.

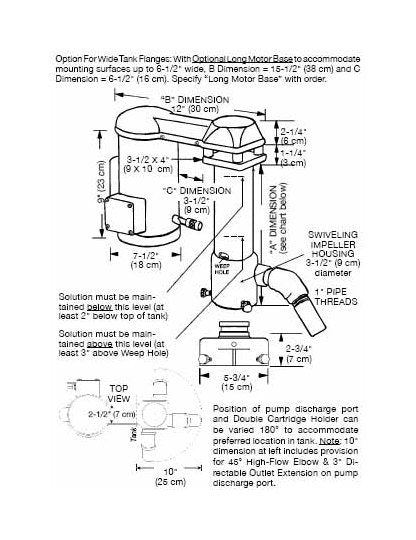

Specifications Dimension A
12-3/4 " | 32 cm
Specifications Flow Rate
2500 gallons per hour (9500 liters per hour) at 60 Hz
Specifications Motor Features
Epoxy coated, TEFC, Thermally Protected
Specifications Motor Power
1/3 hp | 250 W
Specifications Motor Rating
120 V, 6.0 A, 50/60 Hz, 2850 rpm | 240 V, 3.0 A, 50/60 Hz, 3450 rpm
Specifications Optional Filter Holder
NFH10 Nut-Style, 10" Length | NFH15 Nut-Style, 15" Length | NFH20 Nut-Style, 20" Length
Specifications Other Options

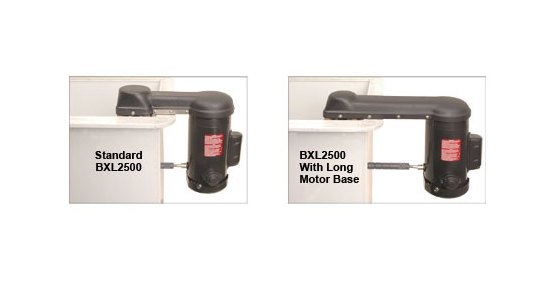

Optional Long Motor Base
Specifications Phase
Single
Specifications Pressure
27 feet (8.2 meters) of head pressure
Specifications Price
1638.00 USD
Specifications Pump Materials Of Construction
Polypropylene
Specifications Shaft Material
PTFE-covered 303 stainless-steel (Standard)
Specifications Weight
25.0 lbs | 11.0 kg
