Flo King BXL5000 Filter System
Flo King BXL5000 Filter System
SKU:FIL-b4818d
Experience efficient filtration with the Flo King BXL5000 Filter System. Ideal for tanks with limited space, this system offers a flow rate of 5000 GPH, durable construction, and versatile installation options.
Regular price
$1,665.00
Regular price
Sale price
$1,665.00
Unit price
per
Initiate Order
Flo King BXL5000 Filter System
$1,665.00
Quantity: 1
Claim Your Seller Account
Flo King BXL5000 Filter System
$1,665.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

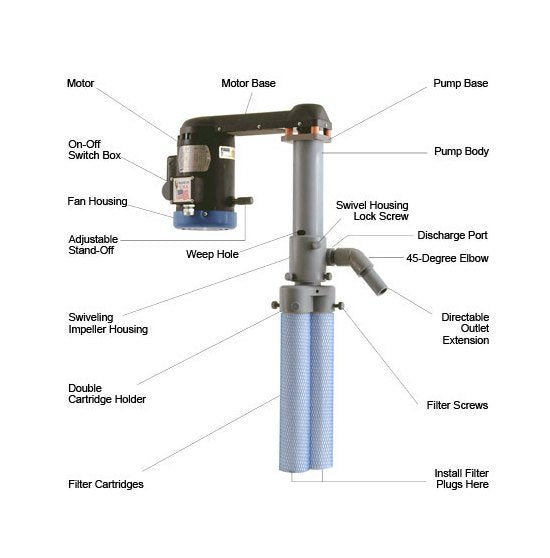

The Flo King BXL5000 Filter System is a state-of-the-art solution for filtration and agitation in tanks with limited overhead clearance. With a flow rate of 5000 gallons per hour, this system features a motor that takes up only 2" above the tank, making it versatile for various tank configurations. Constructed with CPVC pump materials and PTFE-covered stainless-steel shaft, the BXL5000 is designed for durability and performance. It comes preassembled with essential accessories and offers the flexibility of multiple body lengths to suit different solution levels. Ideal for metal-finishing solutions, this system ensures efficient filtration with its unique design and quality components.
Product Specifications
Note Note

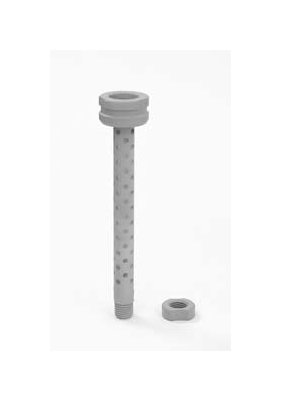

Running Pump Dry Does Not Damage Motor, Pump, Seals or BearingsThe Nut-Style Filter Holder allows you to change filter cartridges without loosening the Filter Screws on the Flo King pump. Just unscrew Threaded Nut from bottom of Stem, remove old cartridge, install new cartridge, tighten Nut and resume filtration.

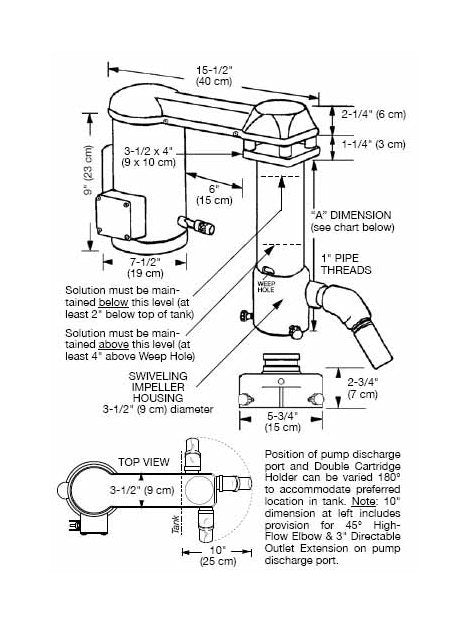

Specifications Dimension A
12-3/4 " | 32 cm
Specifications Flow Rate
5000 gallons per hour (19,000 liters per hour) at 60 Hz
Specifications Motor Features
Epoxy coated, TEFC, Thermally Protected
Specifications Motor Power
3/4 hp | 560 W
Specifications Motor Rating
110/220 V, 9.2/4.6 A, 50 Hz, 2850 rpm | 115/230 V, 9.6/4.8 A, 60 Hz, 3450 rpm
Specifications Optional Filter Holder
NFH10 Nut-Style, 10" Length | NFH15 Nut-Style, 15" Length | NFH20 Nut-Style, 20" Length
Specifications Phase
Single
Specifications Pressure
27 feet (8.2 meters) of head pressure
Specifications Price
1665.00 USD
Specifications Pump Materials Of Construction
CPVC
Specifications Shaft Material
PTFE-covered 303 stainless-steel (Standard)
Specifications Weight
29.0 lbs | 13.0 kg
