Flo King BXL5000 In-Tank Filter System
Flo King BXL5000 In-Tank Filter System
SKU:FIL-1a2d76
High-performing BXL5000 In-Tank Filter System with CPVC construction, 5000 GPH flow rate, and adjustable body lengths. Ideal for limited clearance applications.
Regular price
$1,771.00
Regular price
Sale price
$1,771.00
Unit price
per
Initiate Order
Flo King BXL5000 In-Tank Filter System
$1,771.00
Quantity: 1
Claim Your Seller Account
Flo King BXL5000 In-Tank Filter System
$1,771.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

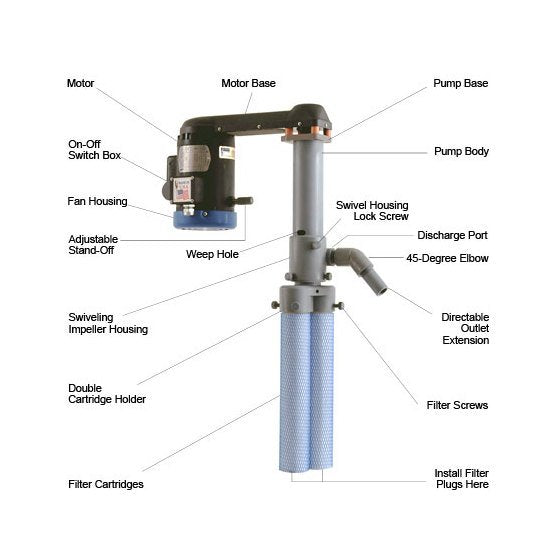

The Flo King BXL5000 In-Tank Filter System is a high-performance filtration solution designed for applications with limited clearance above the tank. Featuring a sturdy construction with CPVC pump materials and PTFE-covered stainless-steel shaft, this system delivers a flow rate of 5000 GPH at 27 feet of head pressure. The 3/4 hp motor, epoxy coated with thermal protection, ensures reliable operation. With multiple body lengths and included accessories like double cartridge holder and adjustable tank clamp, the BXL5000 provides efficient filtration and agitation for various tank configurations.
Product Specifications
Note Note

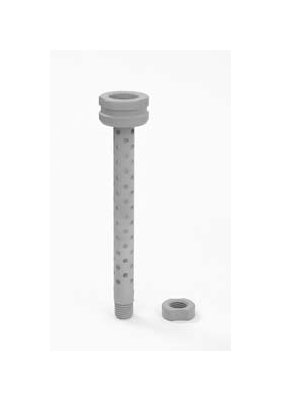

Running Pump Dry Does Not Damage Motor, Pump, Seals or BearingsThe Nut-Style Filter Holder allows you to change filter cartridges without loosening the Filter Screws on the Flo King pump. Just unscrew Threaded Nut from bottom of Stem, remove old cartridge, install new cartridge, tighten Nut and resume filtration.

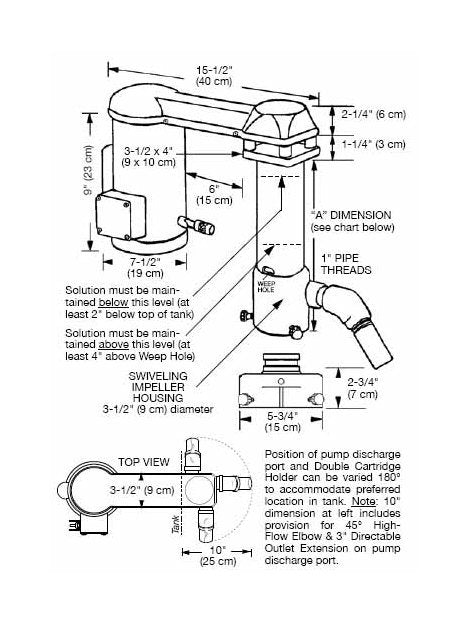

Specifications Dimension A
16-3/4 " | 43 cm
Specifications Flow Rate
5000 gallons per hour (19,000 liters per hour) at 60 Hz
Specifications Motor Features
Epoxy coated, TEFC, Thermally Protected
Specifications Motor Power
3/4 hp | 560 W
Specifications Motor Rating
110/220 V, 9.2/4.6 A, 50 Hz, 2850 rpm | 115/230 V, 9.6/4.8 A, 60 Hz, 3450 rpm
Specifications Optional Filter Holder
NFH10 Nut-Style, 10" Length | NFH15 Nut-Style, 15" Length | NFH20 Nut-Style, 20" Length
Specifications Phase
Single
Specifications Pressure
27 feet (8.2 meters) of head pressure
Specifications Price
1771.00 USD
Specifications Pump Materials Of Construction
CPVC
Specifications Shaft Material
PTFE-covered 303 stainless-steel (Standard)
Specifications Weight
29.0 lbs | 13.0 kg
