Flo King BXL5000 In-Tank Filter System
Flo King BXL5000 In-Tank Filter System
SKU:FIL-422cc4
Experience efficient filtration with the Flo King BXL5000 In-Tank Filter System, ideal for limited clearance setups. Features powerful motor, Polypropylene pump, and versatile body lengths.
Regular price
$1,758.00
Regular price
Sale price
$1,758.00
Unit price
per
Initiate Order
Flo King BXL5000 In-Tank Filter System
$1,758.00
Quantity: 1
Claim Your Seller Account
Flo King BXL5000 In-Tank Filter System
$1,758.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

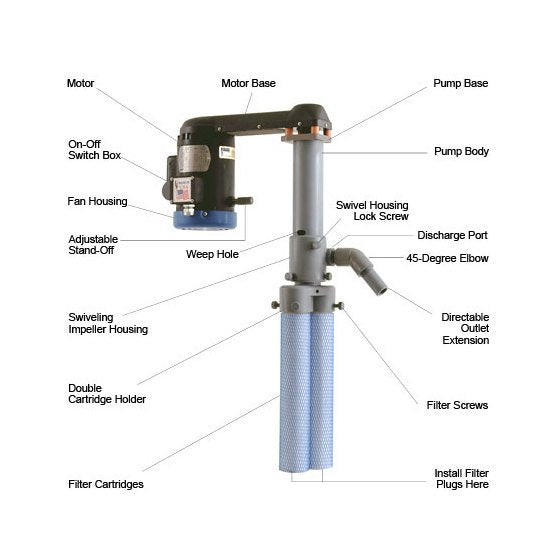

The Flo King BXL5000 In-Tank Filter System is designed for operations with limited clearance over the tank. With a flow rate of 5000 GPH, this system features Polypropylene pump materials, PTFE-covered shaft, and a powerful 3/4 hp epoxy-coated motor. It comes preassembled with a double cartridge holder, swiveling impeller housing, and adjustable tank clamp, providing filtration and agitation for larger tanks. The system is versatile with body lengths ranging from 8" to 14", catering to various solution levels and depths.
Product Specifications
Note Note

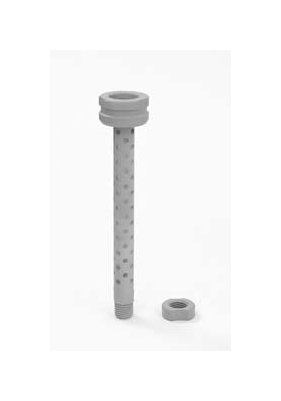

Running Pump Dry Does Not Damage Motor, Pump, Seals or BearingsThe Nut-Style Filter Holder allows you to change filter cartridges without loosening the Filter Screws on the Flo King pump. Just unscrew Threaded Nut from bottom of Stem, remove old cartridge, install new cartridge, tighten Nut and resume filtration.

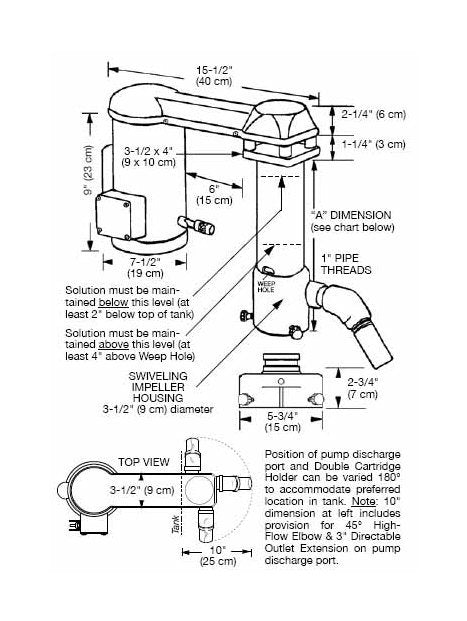

Specifications Dimension A
10-3/4 " | 28 cm
Specifications Flow Rate
5000 gallons per hour (19,000 liters per hour) at 60 Hz
Specifications Motor Features
Epoxy coated, TEFC, Thermally Protected
Specifications Motor Power
3/4 hp | 560 W
Specifications Motor Rating
110/220 V, 9.2/4.6 A, 50 Hz, 2850 rpm | 115/230 V, 9.6/4.8 A, 60 Hz, 3450 rpm
Specifications Optional Filter Holder
NFH10 Nut-Style, 10" Length | NFH15 Nut-Style, 15" Length | NFH20 Nut-Style, 20" Length
Specifications Phase
Single
Specifications Pressure
27 feet (8.2 meters) of head pressure
Specifications Price
1758.00 USD
Specifications Pump Materials Of Construction
Polypropylene
Specifications Shaft Material
PTFE-covered 303 stainless-steel (Standard)
Specifications Weight
29.0 lbs | 13.0 kg
