Flow Control Valve DRV-06 NPTF with Check Valve

Flow Control Valve DRV-06 NPTF with Check Valve

ACC-9641f8

Achieve precise hydraulic fluid control with the Flow Control Valve DRV-06 NPTF. Color-coded knob for easy adjustments at up to 5000 PSI.

$49.99
$49.99
Sale

Initiate Order

Flow Control Valve DRV-06 NPTF with Check Valve

Flow Control Valve DRV-06 NPTF with Check Valve

$49.99

Quantity: 1

Claim Your Seller Account

Flow Control Valve DRV-06 NPTF with Check Valve

Flow Control Valve DRV-06 NPTF with Check Valve

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Flow Control Valve DRV-06 NPTF with Check Valve is engineered for precise and repeatable control of hydraulic fluids up to 5000 PSI. Featuring a micrometer-style adjustment knob with color-coded flow indicator, this valve ensures accurate flow adjustments for inline applications. Constructed with carbon steel housing, zinc-plated finish, and NPTF threaded connections, it meets ISO standards for reliable performance. With a cracking pressure of 7 psi, it offers safe and efficient flow control while weighing only 0.13 kg. Experience easy-to-read visual flow reference and durable construction with this industry-compliant flow control valve.

Product Specifications

Dimensions Diameter G
0.94 in | 24 mm
Dimensions Diameter H
0.51 in | 13 mm
Dimensions Dimension A
2.17 in | 55 mm
Dimensions Dimension B
1.97 in | 50 mm
Dimensions Dimension C
0.31 in | 8 mm
Dimensions Dimension D
0.63 in | 16 mm
Dimensions Dimension E
1.02 in | 26 mm
Dimensions Dimension F
1.77 in | 45 mm
Dimensions Dimension J
Pg 7 Thread
Features 0
8 sizes, 1/8" - 1-1/2"NPTF or SAE O-Ring threaded connections, or manifold mountingFPM (Fluoroelastomer) O-Rings (standard)Color coded spindle for accurate flow controlProvision for panel mountingUnique safety spindle design
Note 0

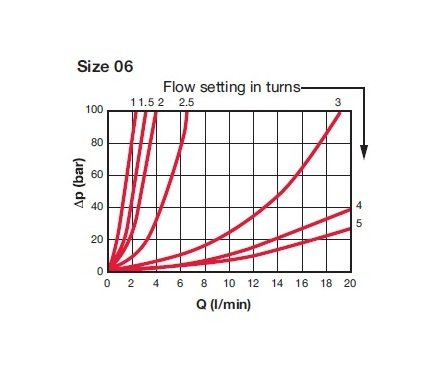

Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºCDimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
7 psi
Specifications Division
ACCESSORIES
Specifications End Size
1/8 in.
Specifications End Type
NPTF
Specifications Finish
Zinc Plated
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Model Code Description
DRV-06-01.X/5
Specifications Mounting Type
In-Line Mounting
Specifications Nominal Size
06
Specifications Operating Pressure
345 bar | 5000 psi
Specifications Port Configuration
NPTF (ANSI B1.20.3)
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
1/8 in.
Specifications Second End Type
NPTF
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Weight
0.13 kg | 0.29 lb
