Explore flow applications with precision using the Flow Demo Board OOL 4 mm Flow Sensor from Innovative Sensor Technology. RoHS compliant with a 4 m/s flow range.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Flow Demo Board OOL 4 mm Flow Sensor - Innovative Sensor Technology USA
$149.99
Quantity: 1
Claim Your Seller Account
Flow Demo Board OOL 4 mm Flow Sensor - Innovative Sensor Technology USA
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

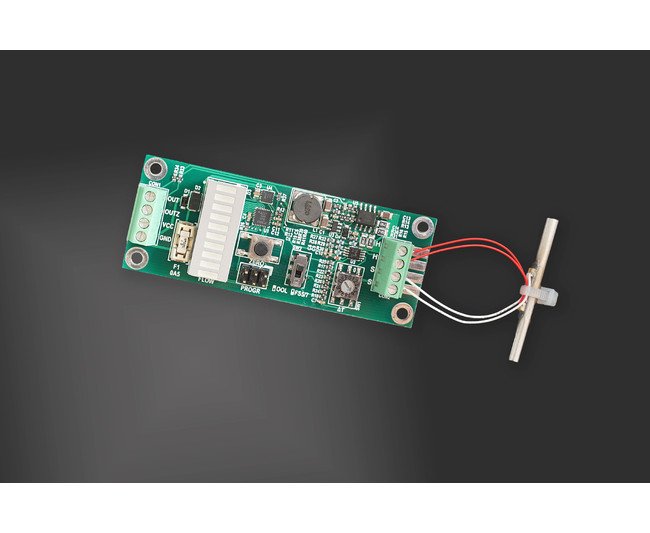

The Flow Demo Board OOL 4 mm Flow Sensor by Innovative Sensor Technology's USA Division is a cutting-edge module designed for demonstrating flow applications in aggressive liquids. This demo board features a steel tube with soldered Pt elements (Pt50 and Pt1000) and a printed circuit board, ensuring precision and reliability in testing environments. With RoHS compliance and a flow range of 4 m/s | 0 to 3000 mL/min, this sensor offers accurate measurements and consistent performance. The use of high-quality materials such as copper/silver wiring, Polytetrafluoroethylene insulation, and a 5V DC supply voltage enhances its durability and efficiency.
Product Specifications
Printed Circuit Board Pcb Dimensions Printed Circuit Board Pcb H
12 mm
Printed Circuit Board Pcb Dimensions Printed Circuit Board Pcb L
25 mm
Printed Circuit Board Pcb Dimensions Printed Circuit Board Pcb W
58 mm
Specifications Direct Current Dc Supply Voltage
5 V
Specifications Direct Current Dc Supply Voltage Tolerance
5 %
Specifications Flow Range
4 m/s | 0 to 3000 mL/min
Specifications Manufacturer Part Number
Flow Demo Board OOL 4 mm
Specifications Non Linear Direct Current Dc Analog Output
0 to < 5 V
Specifications Old Product Code
160.00026
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Tube Length
40 mm
Specifications Tube Outer Diameter
4 mm
Specifications Wire Insulation
Polytetrafluoroethylene (PTFE)
Specifications Wire Length
50 mm
Specifications Wire Size
30 AWG
Specifications Wire Type
Printed Circuit Board (PCB) to Tube: Copper (Cu)/Silver (Ag)
