Flow Sensor FS7.0.1L.195 – Innovative Sensor Technology, USA Division
Flow Sensor FS7.0.1L.195 – Innovative Sensor Technology, USA Division
SKU:FLO-f6e14c
Experience precise gas flow measurement with the FS7.0.1L.195 Flow Sensor by Innovative Sensor Technology, USA Division. RoHS compliant, temperature range -20 to +150 ºC, and compact design.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Flow Sensor FS7.0.1L.195 – Innovative Sensor Technology, USA Division
$69.99
Quantity: 1
Claim Your Seller Account
Flow Sensor FS7.0.1L.195 – Innovative Sensor Technology, USA Division
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

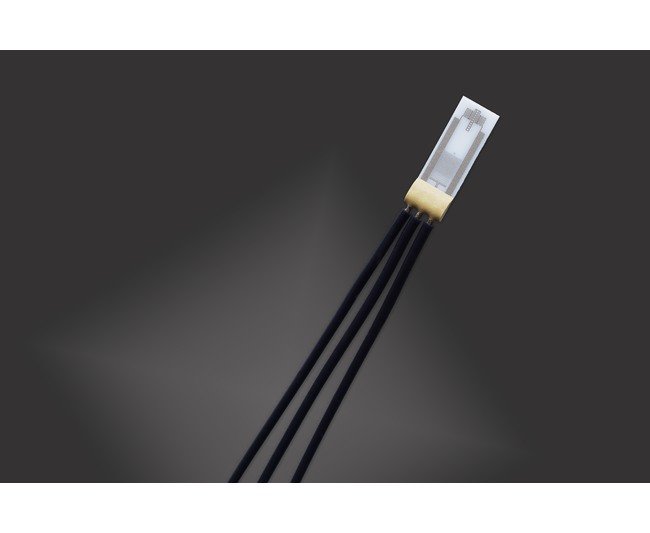

The FS7.0.1L.195 Flow Sensor by Innovative Sensor Technology, USA Division, is a cutting-edge Thermal Gas Flow Sensor designed for precise flow measurement in a wide range of applications. With its symmetrical heater design and exceptional sensitivity, this sensor ensures accurate and reliable flow data. It features RoHS compliance, a temperature range of -20 to +150 ºC, and copper/silver stranded wires with PTFE insulation. The flow range of 0 to 100 m/s and compact dimensions make it ideal for both consumer and institutional needs.
Product Specifications
Dimensions Height
0.2 mm
Dimensions Length
6.9 mm
Dimensions Width
2.4 mm
Specifications Flow Range
0 to 100 m/s
Specifications Manufacturer Part Number
FS7.0.1L.195
Specifications Number Of Pins
3
Specifications Old Product Code
050.00216
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Temperature Range
-20 to +150 ºC
Specifications Wire Insulation
Polytetrafluoroethylene (PTFE)
Specifications Wire Length
195 mm
Specifications Wire Size
30 AWG
Specifications Wire Type
Copper (Cu)/Silver (Ag) Stranded
