Flow-Thru Inflatable Pipe Plugs
Flow-Thru Inflatable Pipe Plugs
SKU:INF-f8c98a
Patented Flow-Thru Inflatable Pipe Plugs with large bypass for water tests or sewer bypass. Durable nitrile/neoprene rubber & stainless steel. Ideal for 18-24' pipes.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Flow-Thru Inflatable Pipe Plugs
$399.99
Quantity: 1
Claim Your Seller Account
Flow-Thru Inflatable Pipe Plugs
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

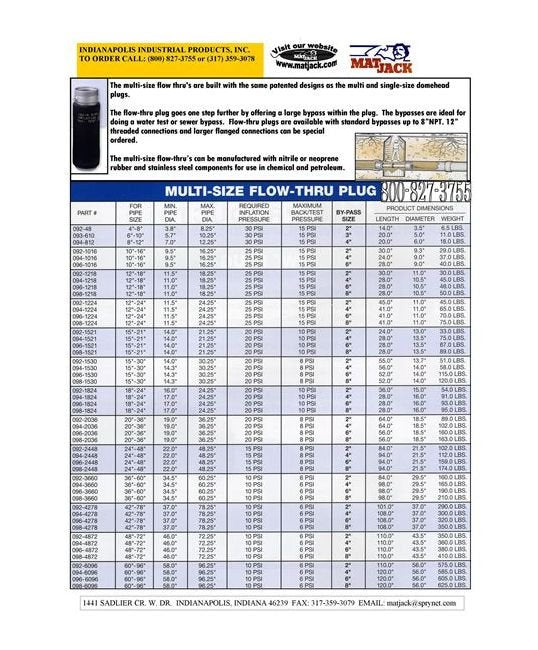

The Flow-Thru Inflatable Pipe Plugs feature a patented design with a large bypass, perfect for water tests or sewer bypass applications. Available with standard bypasses up to 8' NPT and can be customized for 12' orders. Manufactured with durable nitrile or neoprene rubber and stainless steel components, ensuring chemical and petroleum usage. With specifications accommodating pipes ranging from 18 to 24 inches in diameter, minimum inflation pressure of 20 psi, and maximum back/test pressure of 10 psi, these plugs are ideal for industrial applications requiring reliable sealing solutions.
Product Specifications
Specifications By Pass
4 in.
Specifications Diameter
16.0 in.
Specifications Length
28.0 in.
Specifications Maximum Backtest Pressure
10 psi
Specifications Maximum Pipe Diameter
24.25 in.
Specifications Minimum Pipe Diameter
17.0 in.
Specifications Pipe Size
18 - 24 in.
Specifications Required Inflation Pressure
20 psi
Specifications Weight
91.0 lbs.
