Flow-Thru Multi-size Inflatable Pipe Plugs
Flow-Thru Multi-size Inflatable Pipe Plugs
SKU:INF-d4d9ed
With patented designs and a large bypass, our Flow-Thru Multi-size Inflatable Pipe Plugs are ideal for water testing and sewer bypass operations in pipes ranging from 36 to 60 inches.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Flow-Thru Multi-size Inflatable Pipe Plugs
$899.99
Quantity: 1
Claim Your Seller Account
Flow-Thru Multi-size Inflatable Pipe Plugs
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

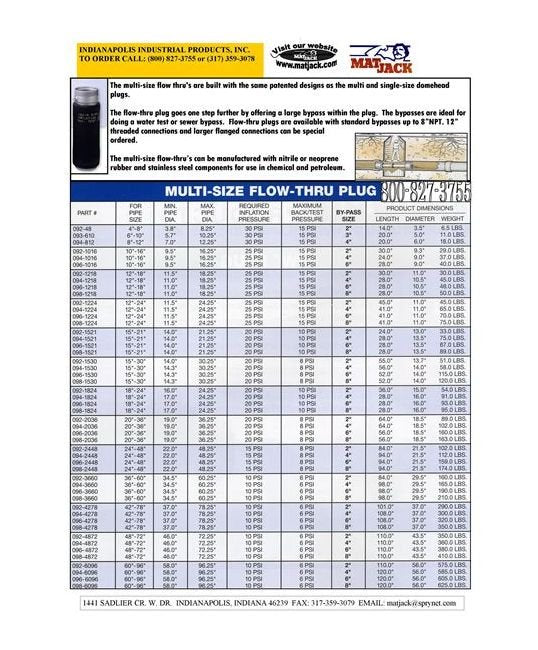

The Flow-Thru Multi-size Inflatable Pipe Plugs are equipped with patented designs, featuring a large bypass for efficient water testing or sewer bypass operations. With standard bypasses up to 8" NPT and the ability to customize up to 12" upon request, these plugs are manufactured with nitrile or neoprene rubber and stainless steel components for chemical and petroleum applications. Built for pipe sizes ranging from 36 to 60 inches, these plugs offer a minimum pipe diameter of 34.5 inches and a maximum pipe diameter of 60.25 inches, ensuring a secure fit. Operating at 10 psi inflation pressure, with a maximum back/test pressure of 6 psi, these plugs boast a length of 98.0 inches, a diameter of 29.5 inches, and weigh 210.0 lbs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications By Pass
8 in.
Specifications Diameter
29.5 in.
Specifications Length
98.0 in.
Specifications Maximum Backtest Pressure
6 psi
Specifications Maximum Pipe Diameter
60.25 in.
Specifications Minimum Pipe Diameter
34.5 in.
Specifications Pipe Size
36 - 60 in.
Specifications Required Inflation Pressure
10 psi
Specifications Weight
210.0 lbs.
