Flow-Thru Multi-Size Inflatable Pipe Plugs
Flow-Thru Multi-Size Inflatable Pipe Plugs
SKU:INF-fd046b
Innovative Flow-Thru Multi-Size Pipe Plugs: Ideal for water tests, sewer bypasses, and chemical/petroleum applications in industrial, municipal, and government sectors.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Flow-Thru Multi-Size Inflatable Pipe Plugs
$799.99
Quantity: 1
Claim Your Seller Account
Flow-Thru Multi-Size Inflatable Pipe Plugs
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

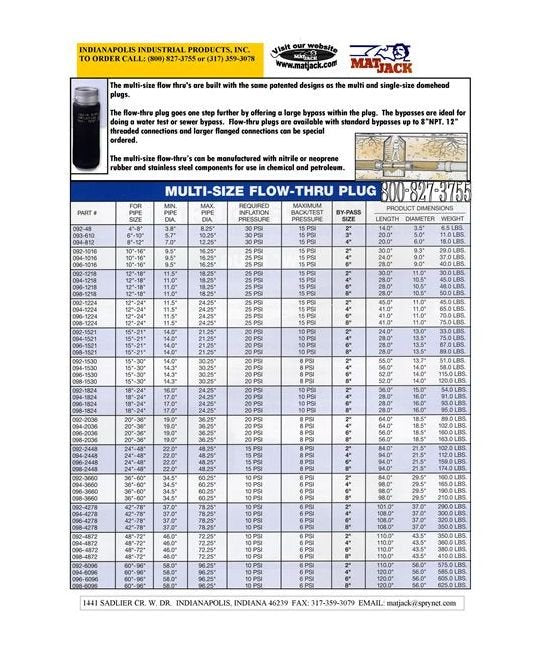

The Flow-Thru Multi-Size Inflatable Pipe Plugs, featuring patented design elements found in domehead plugs, offer an innovative large bypass for water tests and sewer bypass operations. With standard bypasses up to 8" NPT and the capacity to be customized with nitrile or neoprene rubber and stainless steel components, these plugs cater to chemical and petroleum applications. Designed for pipes ranging from 36 to 60 inches in diameter, these plugs provide secure sealing, easy inflation at 10 psi, and reliable back/test pressure resistance at 6 psi, all while being 100% leak-proof. Ideal for industrial, municipal, and government usage.
Product Specifications
Specifications By Pass
4 in.
Specifications Diameter
29.5 in.
Specifications Length
98.0 in.
Specifications Maximum Backtest Pressure
6 psi
Specifications Maximum Pipe Diameter
60.25 in.
Specifications Minimum Pipe Diameter
34.5 in.
Specifications Pipe Size
36 - 60 in.
Specifications Required Inflation Pressure
10 psi
Specifications Weight
165.0 lbs.
