Flow Thru Pipe Plugs - Multi-size Inflatable Pipe Plugs
Flow Thru Pipe Plugs - Multi-size Inflatable Pipe Plugs
SKU:INF-6845f4
Versatile Multi-size Flow Thru Pipe Plugs - Ideal for water tests, sewer bypasses, chemical & petroleum use. Available in nitrile or neoprene rubber with stainless steel components.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Flow Thru Pipe Plugs - Multi-size Inflatable Pipe Plugs
$399.99
Quantity: 1
Claim Your Seller Account
Flow Thru Pipe Plugs - Multi-size Inflatable Pipe Plugs
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

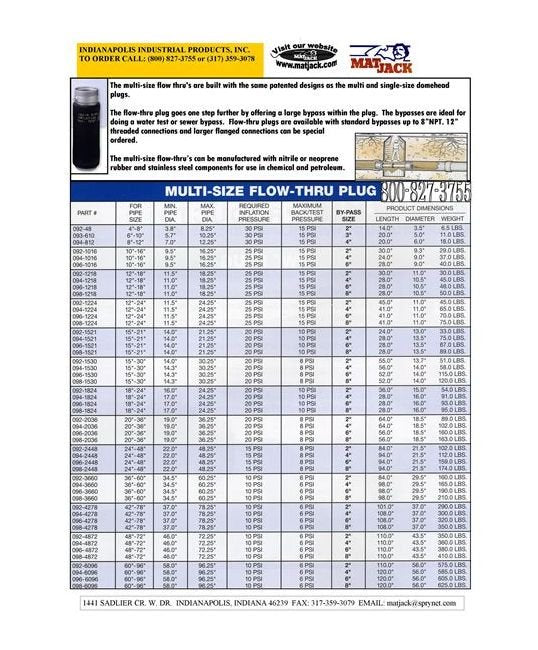

The Multi-size Flow Thru Pipe Plugs are expertly designed with patented technology, featuring a large bypass for efficient water tests and sewer bypass operations. With standard bypasses up to 8" NPT and the option to order 12", these plugs are versatile and durable. Manufactured with nitrile or neoprene rubber and stainless steel components, they are ideal for chemical and petroleum applications. Suitable for pipe sizes ranging from 15 to 21 inches, these plugs offer a secure fit with a minimum diameter of 14.0 inches and a maximum diameter of 21.25 inches. Operating at a required inflation pressure of 20 psi and withstanding a maximum back/test pressure of 10 psi, these plugs are a reliable choice for various industrial applications.
Product Specifications
Specifications By Pass
8 in.
Specifications Diameter
13.5 in.
Specifications Length
28.0 in.
Specifications Maximum Backtest Pressure
10 psi
Specifications Maximum Pipe Diameter
21.25 in.
Specifications Minimum Pipe Diameter
14.0 in.
Specifications Pipe Size
15 - 21 in.
Specifications Required Inflation Pressure
20 psi
Specifications Weight
89.0 lbs.
