Flow-Thru Pipe Plugs with Large Bypass
Flow-Thru Pipe Plugs with Large Bypass
SKU:INF-db8bc6
High-performance Multi-size Flow Thru Pipe Plugs with large bypass, ideal for water testing and sewer bypass in pipes from 18-24" dia.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Flow-Thru Pipe Plugs with Large Bypass
$399.99
Quantity: 1
Claim Your Seller Account
Flow-Thru Pipe Plugs with Large Bypass
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

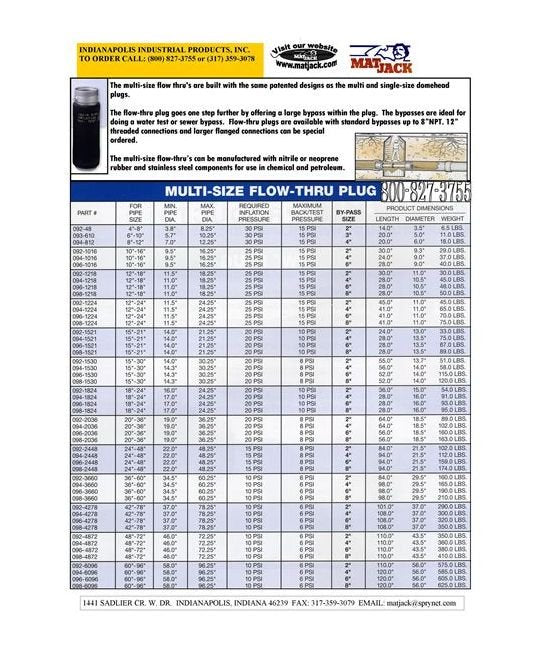

The Multi-size Flow Thru Pipe Plugs with large bypass are engineered with patented designs for superior performance. Ideal for water testing or sewer bypass operations, these flow-thru plugs feature a significant bypass up to 8" NPT, with the option to order up to 12". Constructed with nitrile or neoprene rubber and stainless steel components, these plugs are suitable for chemical and petroleum applications. With specifications including a pipe size range of 18 - 24 inches, minimum pipe diameter of 17.0 inches, and a maximum back/test pressure of 10 psi, these plugs ensure efficient and reliable operations.
Product Specifications
Specifications By Pass
8 in.
Specifications Diameter
16.0 in.
Specifications Length
28.0 in.
Specifications Maximum Backtest Pressure
10 psi
Specifications Maximum Pipe Diameter
24.25 in.
Specifications Minimum Pipe Diameter
17.0 in.
Specifications Pipe Size
18 - 24 in.
Specifications Required Inflation Pressure
20 psi
Specifications Weight
95.0 lbs.
