Flow Thru Pipe Plugs with Multi-Size Bypass
Flow Thru Pipe Plugs with Multi-Size Bypass
SKU:INF-847a9c
Upgrade maintenance tasks with our innovative Multi-size Flow Thru Pipe Plugs, featuring a large bypass for seamless testing and bypass operations.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Flow Thru Pipe Plugs with Multi-Size Bypass
$299.99
Quantity: 1
Claim Your Seller Account
Flow Thru Pipe Plugs with Multi-Size Bypass
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

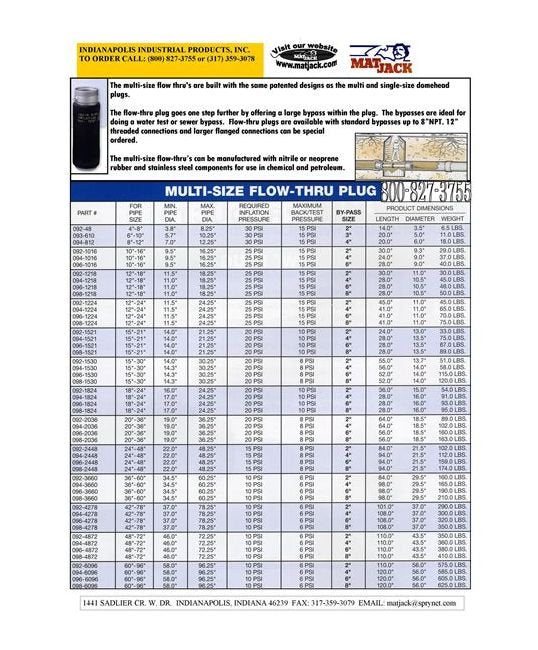

Enhance pipe maintenance with our Multi-size Flow Thru Pipe Plugs featuring a patented design for efficient sealing. These inflatable pipe plugs offer a unique large bypass, ideal for water testing or sewer bypass tasks. Available in nitrile or neoprene rubber with stainless steel components, suitable for chemical and petroleum applications. With specifications including a pipe size range of 12-18 inches, bypass of up to 8 inches NPT, and meeting inflation and back/test pressure standards, these plugs ensure reliable performance in diverse settings.
Product Specifications
Specifications By Pass
8 in.
Specifications Diameter
10.5 in.
Specifications Length
28.0 in.
Specifications Maximum Backtest Pressure
15 psi
Specifications Maximum Pipe Diameter
18.25 in.
Specifications Minimum Pipe Diameter
11.0 in.
Specifications Pipe Size
12 - 18 in.
Specifications Required Inflation Pressure
25 psi
Specifications Weight
50.0 lbs.
