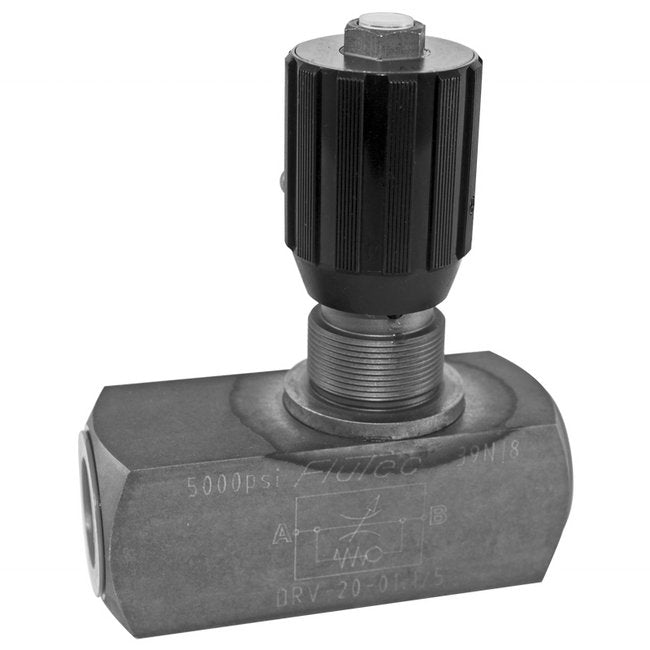

FlowLux DRV-08 NPTF Flow Control Valve with Check
FlowLux DRV-08 NPTF Flow Control Valve with Check
SKU:ACC-a6c715
Experience precise hydraulic flow control with the ANSI-standard FlowLux DRV-08 NPTF Valve, perfect for pressures up to 5000 PSI.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
FlowLux DRV-08 NPTF Flow Control Valve with Check
$129.99
Quantity: 1
Claim Your Seller Account
FlowLux DRV-08 NPTF Flow Control Valve with Check
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The FlowLux DRV-08 NPTF Flow Control Valve with Check is designed for precise hydraulic fluid control at pressures up to 5000 PSI. Featuring a micrometer-style adjustment knob with a color-coded flow indicator, it offers accurate and repeatable flow control. This valve, constructed from carbon steel with zinc plating, meets ANSI standards and is ideal for inline applications. With its compact dimensions and versatile mounting options, the FlowLux DRV-08 ensures efficient and reliable fluid control in a variety of industrial settings.
Product Specifications

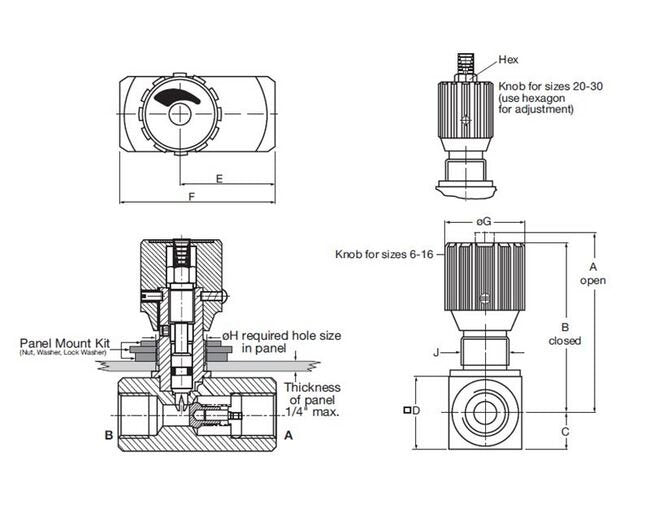

Dimensions Diameter G
1.14 in | 29 mm
Dimensions Diameter H
0.75 in | 19 mm
Dimensions Dimension A
2.84 in | 72 mm
Dimensions Dimension B
2.56 in | 65 mm
Dimensions Dimension C
0.49 in | 12.5 mm
Dimensions Dimension D
0.98 in | 25 mm
Dimensions Dimension E
1.32 in | 33.5 mm
Dimensions Dimension F
2.17 in | 55 mm
Dimensions Dimension J
Pg 11 Thread
Features 0
8 sizes, 1/8" - 1-1/2"NPTF or SAE O-Ring threaded connections, or manifold mountingFPM (Fluoroelastomer) O-Rings (standard)Color coded spindle for accurate flow controlProvision for panel mountingUnique safety spindle design
Note 0

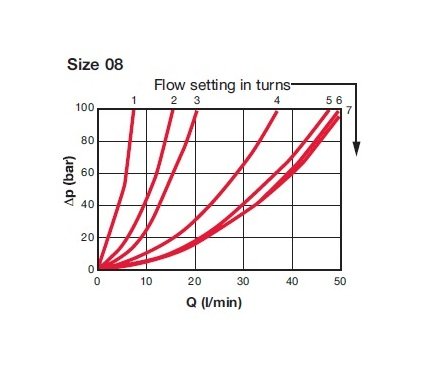

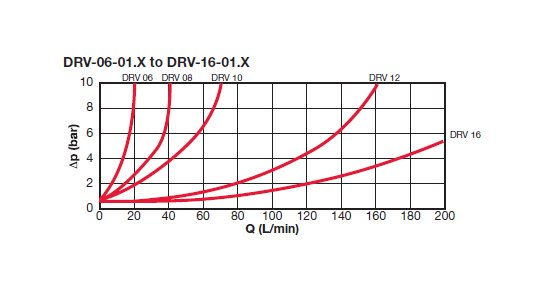

Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºCDimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
65 psi
Specifications Division
ACCESSORIES
Specifications End Size
1/4 in.
Specifications End Type
NPTF
Specifications Finish
Zinc Plated
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
American National Standards Institute (ANSI)
Specifications Model Code Description
DRV-08-01.X/5-65
Specifications Mounting Type
In-Line Mounting
Specifications Nominal Size
08
Specifications Operating Pressure
345 bar | 5000 psi
Specifications Port Configuration
NPTF (ANSI B1.20.3)
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
1/4 in.
Specifications Second End Type
NPTF
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Weight
0.3 kg | 0.66 lb
