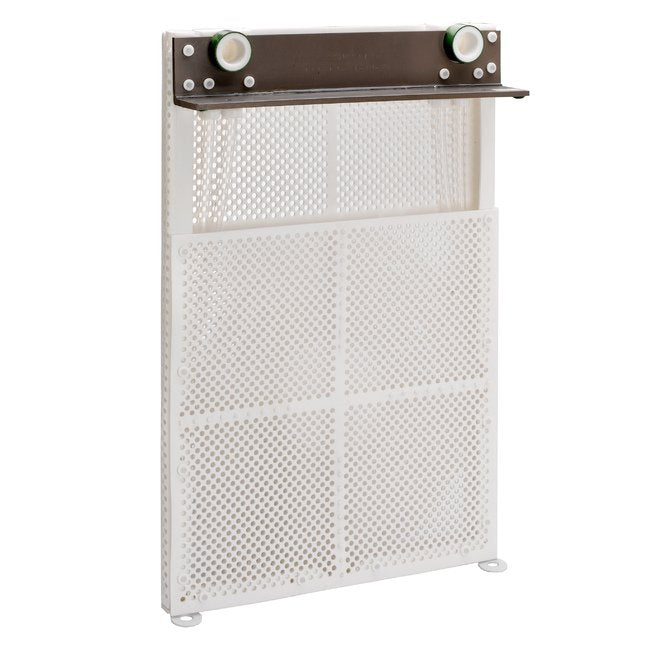

Fluoropolymer Heat Exchanger Coils - X Series
Fluoropolymer Heat Exchanger Coils - X Series
SKU:HEA-04582e
High-performance Fluoropolymer Heat Exchanger Coils for efficient heating and cooling applications with robust design and leak-free operation.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Fluoropolymer Heat Exchanger Coils - X Series
$499.99
Quantity: 1
Claim Your Seller Account
Fluoropolymer Heat Exchanger Coils - X Series
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The X Series Fluoropolymer Heat Exchanger Coils offer a robust design with exceptional chemical compatibility, ideal for heating or cooling applications. Constructed with FEP, PFA, or PTFE fluoropolymer materials, these coils come with heavy-duty CPVC mounting brackets and heavy wall tubing for improved circulation and reduced pressure drop. Rated for up to 60 PSI steam service, these coils feature integral inlet/outlet connections for leak-free operation and eliminate stray currents in tanks. With options ranging from 2.25 ft² to 46.5 ft² of exchange area, these coils are available in various sizes and configurations to meet your specific heating and cooling needs.
Product Specifications
Features And Benefits Features And Benefits
RUGGED CONSTRUCTION: All wetted parts of fluoropolymer (FEP, PFA or PTFE) construction with a heavy duty CPVC mounting bracket. Heavy duty CPVC mounting bracket. OUTSTANDING PERFORMANCE: Heavy wall tubing improves circulation and minimizes pressure drop. Larger coils constructed of 1/2 inch (13 mm) tubing, smaller coils have 1/4 inch (7 mm) tubing. LEAK FREE OPERATION: Integral inlet and outlet manifolds for single point connections greatly reduce the potential for leaks and simplify installation. NON-CONDUCTIVE: Eliminates stray currents in the tank. PRESSURE RATING: Standard coils are made from FEP (Fluorinated Ethylene Propylene) and rated up to 30 PSI steam service. PFA (Perfluoroakoxy resin) coils are available for steam service up to 60 PSI. 10 PSI minimum steam pressure required for operation. SIZES: 2.25 ft2 to 46.5 ft2 of exchange area standard. OPTIONS AVAILABLE (consult factory): Anti-floatation brackets. Special manifold connections. Custom and bottom style configurations. Dual coils for both heating and cooling.
Note Note
Vacuum breakers recommended for fluoropolymer heat exchanger steam heating installations. Please consult factory regarding pressure reduced steam applications.
Specifications Connections
1" FNPT
Specifications Dimension A
17-1/2 " | 445 mm
Specifications Dimension B
17-1/2 " | 445 mm
Specifications Dimension C
2 " | 51 mm
Specifications Dimension D
23-1/2 " | 597 mm
Specifications Exchange Area
6.00 ft²
Specifications Manufacturer
Process Technology
Specifications Shipping Weight
18.0 Pound
Specifications Tubing Diameter
1/2 " | 13 mm
Specifications Weight
18.0 lbs | 8.2 kg
