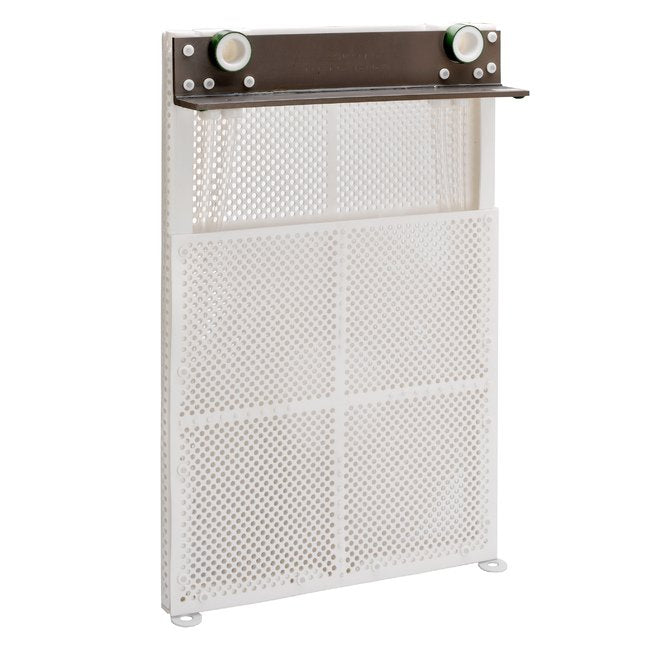

Fluoropolymer Heat Exchanger, X Series
Fluoropolymer Heat Exchanger, X Series
SKU:HEA-eaaba9
Durable fluoropolymer heat exchanger with efficient circulation, non-conductive design, and leak-free operation for industrial applications.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Fluoropolymer Heat Exchanger, X Series
$699.99
Quantity: 1
Claim Your Seller Account
Fluoropolymer Heat Exchanger, X Series
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The X Series Fluoropolymer Heat Exchanger offers exceptional chemical compatibility and rugged construction suitable for heating or cooling applications. Constructed with FEP, PFA, or PTFE fluoropolymer components and a heavy-duty CPVC mounting bracket, this heat exchanger delivers reliable performance. It features heavy wall tubing for improved circulation, non-conductive properties to eliminate stray currents, and integral inlet/outlet connections for leak-free operation. With pressure ratings of up to 60 PSI for PFA coils, this heat exchanger ensures efficient operation with a minimum steam pressure requirement of 10 PSI. Available in various exchange area sizes and with optional configurations for customization.
Product Specifications
Features And Benefits Features And Benefits
RUGGED CONSTRUCTION: All wetted parts of fluoropolymer (FEP, PFA or PTFE) construction with a heavy duty CPVC mounting bracket. Heavy duty CPVC mounting bracket. OUTSTANDING PERFORMANCE: Heavy wall tubing improves circulation and minimizes pressure drop. Larger coils constructed of 1/2 inch (13 mm) tubing, smaller coils have 1/4 inch (7 mm) tubing. LEAK FREE OPERATION: Integral inlet and outlet manifolds for single point connections greatly reduce the potential for leaks and simplify installation. NON-CONDUCTIVE: Eliminates stray currents in the tank. PRESSURE RATING: Standard coils are made from FEP (Fluorinated Ethylene Propylene) and rated up to 30 PSI steam service. PFA (Perfluoroakoxy resin) coils are available for steam service up to 60 PSI. 10 PSI minimum steam pressure required for operation. SIZES: 2.25 ft2 to 46.5 ft2 of exchange area standard. OPTIONS AVAILABLE (consult factory): Anti-floatation brackets. Special manifold connections. Custom and bottom style configurations. Dual coils for both heating and cooling.
Note Note
Vacuum breakers recommended for fluoropolymer heat exchanger steam heating installations. Please consult factory regarding pressure reduced steam applications.
Specifications Connections
1-1/2" FNPT
Specifications Dimension A
17-1/2 " | 445 mm
Specifications Dimension B
17-1/2 " | 445 mm
Specifications Dimension C
5-3/4 " | 146 mm
Specifications Dimension D
23-1/2 " | 597 mm
Specifications Exchange Area
24.00 ft²
Specifications Manufacturer
Process Technology
Specifications Shipping Weight
30.0 Pound
Specifications Tubing Diameter
1/2 " | 13 mm
Specifications Weight
30.0 lbs | 13.6 kg
