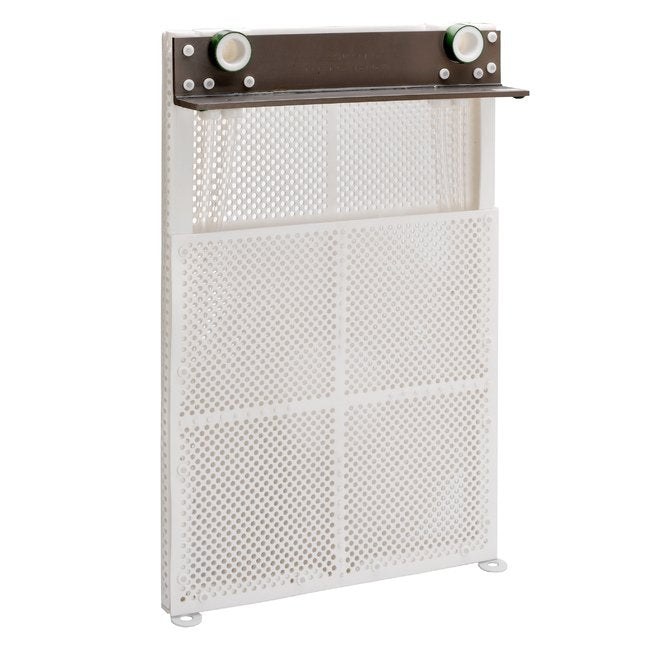

Fluoropolymer Heat Exchangers - X Series
Fluoropolymer Heat Exchangers - X Series
SKU:HEA-177f7e
Durable fluoropolymer heat exchangers for reliable heating and cooling applications. Efficient, non-conductive, and versatile. Options for customized configurations.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Fluoropolymer Heat Exchangers - X Series
$699.99
Quantity: 1
Claim Your Seller Account
Fluoropolymer Heat Exchangers - X Series
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The X Series Fluoropolymer Heat Exchangers are built for durability and reliability in heating or cooling applications. Constructed with FEP, PFA, or PTFE fluoropolymers and a heavy-duty CPVC mounting bracket, these heat exchangers ensure excellent chemical compatibility. Featuring heavy wall tubing for improved circulation and reduced pressure drop, integral inlet/outlet connections to minimize leaks, and non-conductive properties to eliminate stray currents. With pressure ratings up to 60 PSI and options ranging from 2.25 ft² to 46.5 ft² exchange areas, the X Series delivers outstanding performance and versatility. Consider optional configurations for specialized needs and consult factory for custom solutions.
Product Specifications
Features And Benefits Features And Benefits
RUGGED CONSTRUCTION: All wetted parts of fluoropolymer (FEP, PFA or PTFE) construction with a heavy duty CPVC mounting bracket. Heavy duty CPVC mounting bracket. OUTSTANDING PERFORMANCE: Heavy wall tubing improves circulation and minimizes pressure drop. Larger coils constructed of 1/2 inch (13 mm) tubing, smaller coils have 1/4 inch (7 mm) tubing. LEAK FREE OPERATION: Integral inlet and outlet manifolds for single point connections greatly reduce the potential for leaks and simplify installation. NON-CONDUCTIVE: Eliminates stray currents in the tank. PRESSURE RATING: Standard coils are made from FEP (Fluorinated Ethylene Propylene) and rated up to 30 PSI steam service. PFA (Perfluoroakoxy resin) coils are available for steam service up to 60 PSI. 10 PSI minimum steam pressure required for operation. SIZES: 2.25 ft2 to 46.5 ft2 of exchange area standard. OPTIONS AVAILABLE (consult factory): Anti-floatation brackets. Special manifold connections. Custom and bottom style configurations. Dual coils for both heating and cooling.
Note Note
Vacuum breakers recommended for fluoropolymer heat exchanger steam heating installations. Please consult factory regarding pressure reduced steam applications.
Specifications Connections
1" FNPT
Specifications Dimension A
17-1/2 " | 445 mm
Specifications Dimension B
17-1/2 " | 445 mm
Specifications Dimension C
3-1/4 " | 82.5 mm
Specifications Dimension D
23-1/2 " | 597 mm
Specifications Exchange Area
12.00 ft²
Specifications Manufacturer
Process Technology
Specifications Shipping Weight
22.0 Pound
Specifications Tubing Diameter
1/2 " | 13 mm
Specifications Weight
22.0 lbs | 10.0 kg
