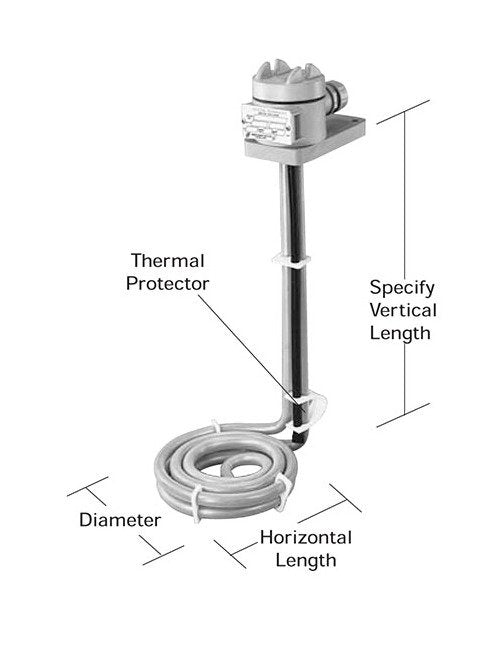

Fluoropolymer L-Shaped Heaters, HXFL Series
Fluoropolymer L-Shaped Heaters, HXFL Series
SKU:HEA-10c582
Efficient and versatile Fluoropolymer L-Shaped Heaters with up to 250°F thermal protection, ideal for corrosive environments.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Fluoropolymer L-Shaped Heaters, HXFL Series
$289.99
Quantity: 1
Claim Your Seller Account
Fluoropolymer L-Shaped Heaters, HXFL Series
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HXFL Series Low Profile L-Shaped Fluoropolymer (PTFE) Heaters are designed for precision heating in corrosive environments. With a watt density of 10 W/in², these heaters deliver 1000W at 120V, ensuring efficient heating. Featuring replaceable thermal protectors for solutions up to 250°F, stainless steel construction, and available guards for different chemical applications, these heaters are versatile and reliable. With certifications from CE, CSA, and UL Listed, these heaters meet stringent quality standards.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Construction
Ground wire is welded to stainless steel sheath.
Specifications Diameter
6 " | 152 mm
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXFL06-R*G
Specifications Horizontal Length
6 " | 152 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Max Cold Zone
36 " | 914 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Phase
Single
Specifications Series
HXFL
Specifications Shipping Weight
7.0 Pound
Specifications Standard Vertical Length
12 " | 305 mm
Specifications Volts
120 V
Specifications Watts
1000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
7.0 lbs | 3.2 kg
