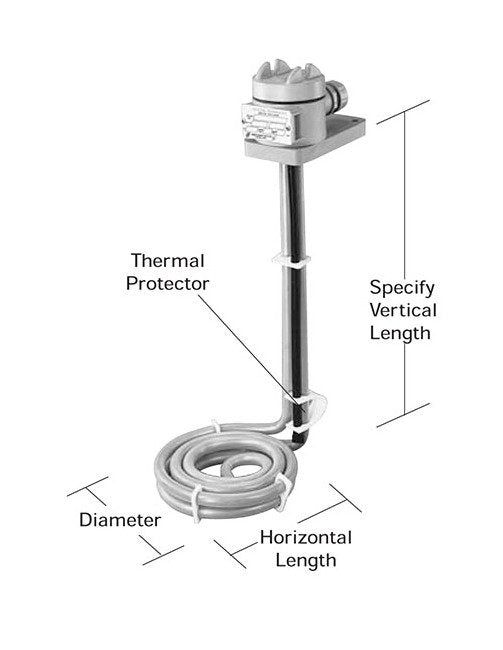

Upgrade your heating solutions with the HXFL Series Low Profile L-Shaped Fluoropolymer (PTFE) Heaters. These heaters boast a watt density of 10 W/in², providing efficient heating with 6000W power at 480V. Designed for versatile applications, the horizontal length of 13" and a standard vertical length of 18" ensure reliable performance. Featuring various thermal overload protection options and constructed with a stainless steel sheath, these heaters meet CE, CSA, and UL standards for safety and quality. Perfect for a wide range of solutions, they come with replaceable thermal protectors for different temperature requirements.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Construction
Ground wire is welded to stainless steel sheath.
Specifications Diameter
13 " | 330 mm
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXFL13-R*G
Specifications Horizontal Length
13 " | 330 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Max Cold Zone
25 " | 635 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Phase
Single
Specifications Series
HXFL
Specifications Shipping Weight
22.0 Pound
Specifications Standard Vertical Length
18 " | 457 mm
Specifications Volts
480 V
Specifications Watts
6000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
22.0 lbs | 10.0 kg
