Fluoropolymer Low Profile L-Shaped Heaters
Fluoropolymer Low Profile L-Shaped Heaters
SKU:HEA-fdddcd
High-performance Fluoropolymer L-Shaped Heaters for precise electric heating applications. CE, CSA, and UL Listed.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Fluoropolymer Low Profile L-Shaped Heaters
$299.99
Quantity: 1
Claim Your Seller Account
Fluoropolymer Low Profile L-Shaped Heaters
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

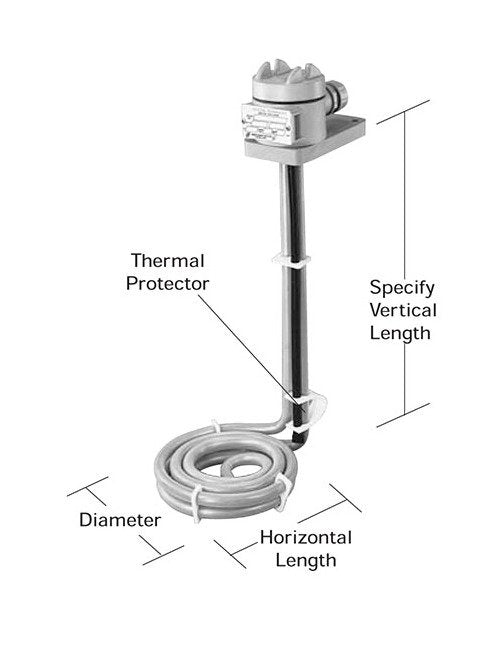

The Fluoropolymer Low Profile L-Shaped Heaters from the HXFL Series by Process Technology are expertly designed for efficient and precise electric heating applications. Constructed with high-quality Fluoropolymer material, these heaters offer a watt density of 10 W/in², delivering 500W at 240V. The innovative design includes a replaceable thermal protector for solutions up to 180°F, with options for higher temperature solutions. Featuring a standard guard for polypropylene and a stainless steel sheath, these heaters ensure safe and reliable operation. With certifications from CE, CSA, and UL Listed, these heaters meet stringent quality and safety standards, making them ideal for various industrial applications.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Construction
Ground wire is welded to stainless steel sheath.
Specifications Diameter
5 " | 127 mm
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXFL05-R*G
Specifications Horizontal Length
5 " | 127 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Max Cold Zone
36 " | 914 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Phase
Single
Specifications Series
HXFL
Specifications Shipping Weight
6.0 Pound
Specifications Standard Vertical Length
12 " | 305 mm
Specifications Volts
240 V
Specifications Watts
500 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
6.0 lbs | 2.7 kg
