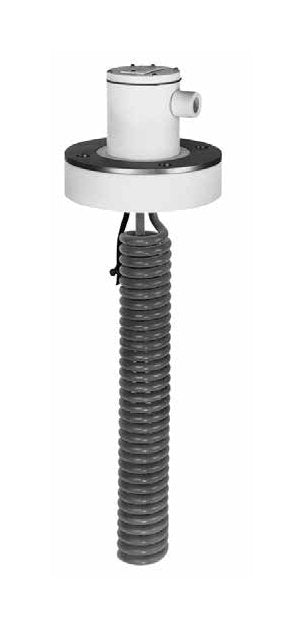

Fluoropolymer (PTFE) Flanged Heater - 3FLX Series, 3" 150 LB
Fluoropolymer (PTFE) Flanged Heater - 3FLX Series, 3" 150 LB
SKU:HEA-30235e
Experience superior chemical resistance and outstanding performance with the 3FLX Series Fluoropolymer (PTFE) Flanged Heater.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Fluoropolymer (PTFE) Flanged Heater - 3FLX Series, 3" 150 LB
$349.99
Quantity: 1
Claim Your Seller Account
Fluoropolymer (PTFE) Flanged Heater - 3FLX Series, 3" 150 LB
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3FLX Series 3" 150 LB Single Element Fluoropolymer (PTFE) Flanged Heater is designed for superior chemical resistance, with heavy-wall fluoropolymer covering ensuring durability. It offers outstanding performance with a low watt density design and corrosion-resistant head. Safety features include a built-in thermal protector and grounded construction. With certifications like CE compliance and various wattage/voltage options, this heater is ideal for institutional and industrial use.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE: Inert to most aqueous acid, alkaline, anodizing and pickling solutions up to 212°F (100°C).RUGGED CONSTRUCTION: Heavy wall fluoropolymer (PTFE) covered stainless steel element reduces permeation and reduces the need for gas purge systems. Guaranteed 100% pinhole free.OUTSTANDING PERFORMANCE: Low watt density design (10 watts/square inch (1.5 w/cm2) uses minimal space and ensure long service life.CORROSION RESISTANT HEAD: Polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.SAFETY FEATURES:Grounded construction.Thermal protector built in. Resettable P2 protector standard for solutions up to 180°F (82°C).Non-floating construction.CERTIFICATIONS: CE compliant (except 600 volts).SIZES: 1,000 watts to 18,000 watts.VOLTAGES: 120 to 600 volts. 3FLX single phase only. 6FLX single or three phase.OPTIONS AVAILABLE (consult factory):P8: Type-J thermocouple for solutions up to 210°F (99°C).Special configurations and lengths.Longer wire and conduit lengths.Lower watt densities for highly viscous solutions and technical acids.Temperature and level controls sized to match the heater (sold separately).
Note Note
Gasket and bolts are not provided. Intended for horizontal installation only.
Specifications Certifications
CE
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Number Of Elements
1
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable Fuse (Type-J TC) thermal protector: P2: for solutions up to 190°F. | Resettable Fuse (Type-J TC) thermal protector: P8: for solutions up to 210°F.
Specifications Overall Length
11 " | 279 mm
Specifications Phase
Single
Specifications Shipping Weight
20.0 Pound
Specifications Volts
240 V
Specifications Watts
1000 W
Specifications Weight
20.0 lbs | 9.1 kg
