Fluoropolymer (PTFE) Heaters, 9HX Series - 9 Element
Fluoropolymer (PTFE) Heaters, 9HX Series - 9 Element
SKU:HEA-ce5bc4
High-performance 9HX Series 9 Element Fluoropolymer (PTFE) Heaters for industrial applications. CE, CSA, UL Listed.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Fluoropolymer (PTFE) Heaters, 9HX Series - 9 Element
$899.99
Quantity: 1
Claim Your Seller Account
Fluoropolymer (PTFE) Heaters, 9HX Series - 9 Element
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

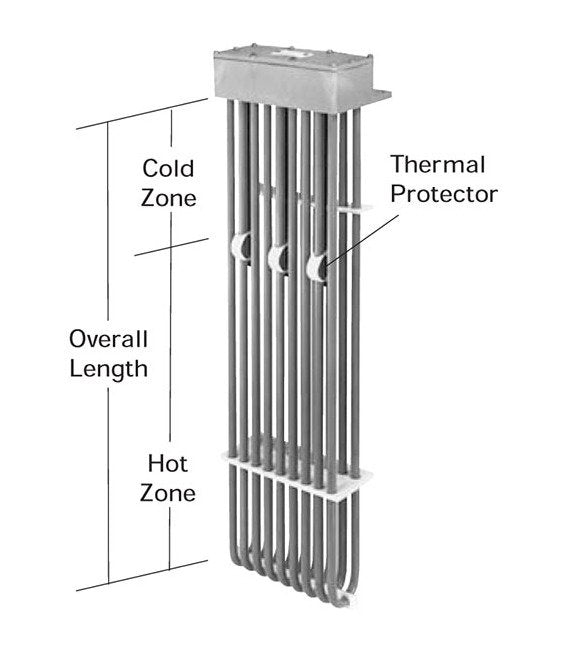

The 9HX Series Fluoropolymer (PTFE) Heaters are engineered for optimal performance in industrial settings. With 9 elements and a wattage of 6000W, these heaters feature a replaceable thermal protector for temperatures up to 250°F. Recommended for solutions exceeding 180°F, the heaters are CE, CSA, and UL Listed, ensuring compliance with industry standards. Guards sold separately.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
9HX29G
Specifications Hot Zone
21 " | 533 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
9
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
29 " | 737 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
9HX Series
Specifications Shipping Weight
36.0 Pound
Specifications Volts
480 V
Specifications Watts
6000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
36.0 lbs | 16.3 kg
