Fluoropolymer (PTFE) Immersion Heaters - 9 Element 9HX Series
Fluoropolymer (PTFE) Immersion Heaters - 9 Element 9HX Series
SKU:HEA-3ca4cb
Powerful 9 Element Fluoropolymer (PTFE) Heaters - Ideal for Industrial Use
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Fluoropolymer (PTFE) Immersion Heaters - 9 Element 9HX Series
$599.99
Quantity: 1
Claim Your Seller Account
Fluoropolymer (PTFE) Immersion Heaters - 9 Element 9HX Series
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

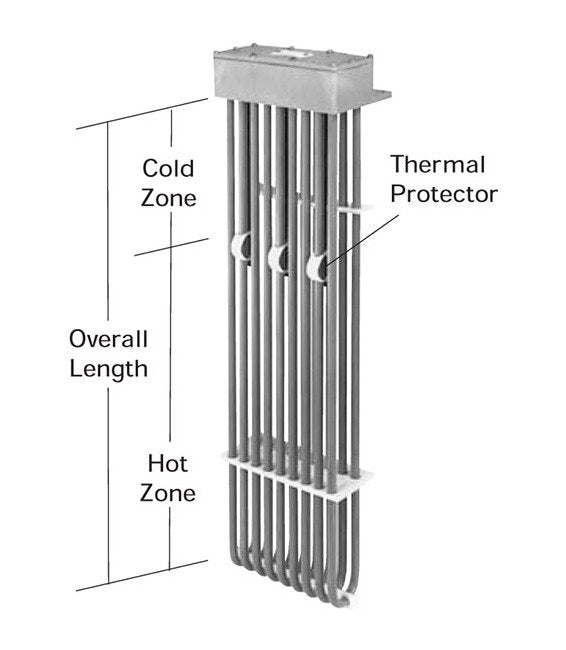

The 9HX Series 9 Element Fluoropolymer (PTFE) Immersion Heaters are expertly designed for precise heating in industrial applications. With 18,000 Watts power, a hot zone of 55", and thermal protectors for solutions up to 250°F, these heaters ensure efficient performance. Recommended for chromic acid and high-temperature solutions, they come with CE, CSA, UL Listed certifications, meeting stringent industry standards.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
9HX68G
Specifications Hot Zone
55 " | 1397 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
9
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
68 " | 1727 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
9HX Series
Specifications Shipping Weight
67.0 Pound
Specifications Volts
240 V
Specifications Watts
18,000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
67.0 lbs | 30.4 kg
