Fluoropolymer (PTFE) Immersion Heaters, HXO Series
Fluoropolymer (PTFE) Immersion Heaters, HXO Series
SKU:HEA-a5fc84
Reliable HXO Series Fluoropolymer (PTFE) Immersion Heaters for industrial applications. With replaceable thermal protectors and safety guards for specific solutions, certified by CE & UL Listed.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Fluoropolymer (PTFE) Immersion Heaters, HXO Series
$349.99
Quantity: 1
Claim Your Seller Account
Fluoropolymer (PTFE) Immersion Heaters, HXO Series
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience efficient and reliable heating with the HXO Series Fluoropolymer (PTFE) Immersion Heaters. Designed for industrial applications, these heaters feature a watt density of 10 W/in², come with various wattage and voltage options, and include replaceable thermal protectors for different solution temperatures. With guards recommended for specific solutions, such as chromic acid, these heaters ensure safe operation. Certified by CE and UL Listed, manufactured by Process Technology, and meeting high-quality standards, these heaters are essential for industrial heating needs.
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXO06-10-17G

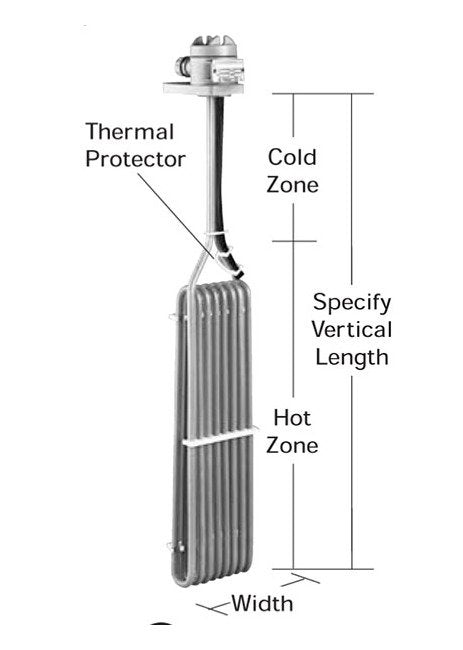

Specifications Hot Zone
10 " | 254 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
35 " | 889 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
17 " | 432 mm
Specifications Phase
Single
Specifications Series
HXO
Specifications Shipping Weight
8.0 Pound
Specifications Std Cold Zone
7 " | 178 mm
Specifications Volts
120 V
Specifications Watts
2000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
8.0 lbs | 3.6 kg
Specifications Width
6 " | 152 mm
