Fluoropolymer (PTFE) Immersion Heaters - HXO Series
Fluoropolymer (PTFE) Immersion Heaters - HXO Series
SKU:HEA-14df6e
High-performance Fluoropolymer (PTFE) Immersion Heaters with 10 W/in² watt density, replaceable thermal protectors, and optional PTFE guards for robust industrial heating solutions.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Fluoropolymer (PTFE) Immersion Heaters - HXO Series
$699.99
Quantity: 1
Claim Your Seller Account
Fluoropolymer (PTFE) Immersion Heaters - HXO Series
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

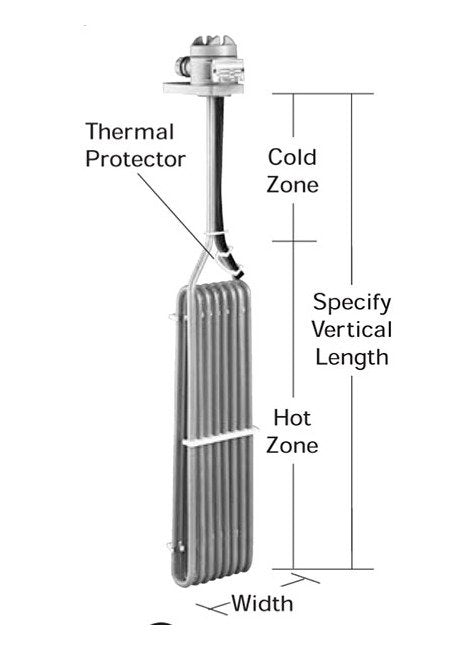

The HXO Series Fluoropolymer (PTFE) Immersion Heaters combine robust design with high-performance capabilities. With a watt density of 10 W/in², these heaters deliver reliable heating with 5000W power at 480V. The heaters feature replaceable thermal protectors, ensuring safety up to 250°F. Recommended for solutions above 180°F, the optional PTFE guards offer enhanced protection. CE and UL Listed, these heaters from Process Technology are ideal for demanding industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXO06-20-35G
Specifications Hot Zone
20 " | 508 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
31 " | 787 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
35 " | 889 mm
Specifications Phase
Single
Specifications Series
HXO
Specifications Shipping Weight
18.0 Pound
Specifications Std Cold Zone
15 " | 381 mm
Specifications Volts
480 V
Specifications Watts
5000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
18.0 lbs | 8.2 kg
Specifications Width
6 " | 152 mm
