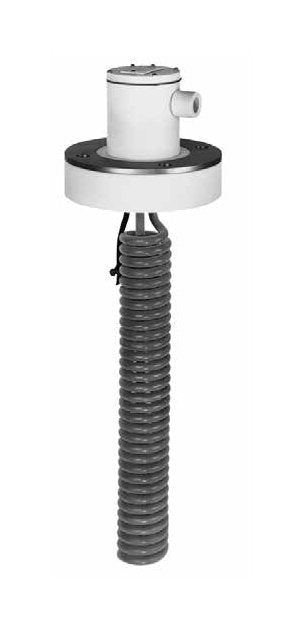

Fluoropolymer (PTFE) Single Element Flanged Heater - 3FLX Series, 3" 150 LB.
Fluoropolymer (PTFE) Single Element Flanged Heater - 3FLX Series, 3" 150 LB.
SKU:HEA-aa56bd
Rugged Fluoropolymer (PTFE) Heater - High Performance & Chemical Resistance
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Fluoropolymer (PTFE) Single Element Flanged Heater - 3FLX Series, 3" 150 LB.
$899.99
Quantity: 1
Claim Your Seller Account
Fluoropolymer (PTFE) Single Element Flanged Heater - 3FLX Series, 3" 150 LB.
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Fluoropolymer (PTFE) Single Element Flanged Heater from the 3FLX Series offers superior chemical resistance, rugged construction with heavy wall fluoropolymer, and outstanding performance with low watt density design. This heater is corrosion-resistant with a polypropylene terminal enclosure and safety features like grounded construction and a built-in thermal protector. Certified by CE, it ranges from 1,000 watts to 18,000 watts and 120 to 600 volts. Ideal for institutional usage due to its reliability and compliance with industry standards.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE: Inert to most aqueous acid, alkaline, anodizing and pickling solutions up to 212°F (100°C).RUGGED CONSTRUCTION: Heavy wall fluoropolymer (PTFE) covered stainless steel element reduces permeation and reduces the need for gas purge systems. Guaranteed 100% pinhole free.OUTSTANDING PERFORMANCE: Low watt density design (10 watts/square inch (1.5 w/cm2) uses minimal space and ensure long service life.CORROSION RESISTANT HEAD: Polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.SAFETY FEATURES:Grounded construction.Thermal protector built in. Resettable P2 protector standard for solutions up to 180°F (82°C).Non-floating construction.CERTIFICATIONS: CE compliant (except 600 volts).SIZES: 1,000 watts to 18,000 watts.VOLTAGES: 120 to 600 volts. 3FLX single phase only. 6FLX single or three phase.OPTIONS AVAILABLE (consult factory):P8: Type-J thermocouple for solutions up to 210°F (99°C).Special configurations and lengths.Longer wire and conduit lengths.Lower watt densities for highly viscous solutions and technical acids.Temperature and level controls sized to match the heater (sold separately).
Note Note
Gasket and bolts are not provided. Intended for horizontal installation only.
Specifications Certifications
CE
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Number Of Elements
1
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable Fuse (Type-J TC) thermal protector: P2: for solutions up to 190°F. | Resettable Fuse (Type-J TC) thermal protector: P8: for solutions up to 210°F.
Specifications Overall Length
21 " | 533 mm
Specifications Phase
Single
Specifications Shipping Weight
26.0 Pound
Specifications Volts
480 V
Specifications Watts
3000 W
Specifications Weight
26.0 lbs | 11.8 kg
