Fluoropolymer Spiral L-Shaped Heaters - HXL Series
Fluoropolymer Spiral L-Shaped Heaters - HXL Series
SKU:HEA-633992
Powerful 4000W Fluoropolymer Heaters with 10 W/in² density for precise heating. CE, CSA, UL certified. Customizable options available.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Fluoropolymer Spiral L-Shaped Heaters - HXL Series
$499.99
Quantity: 1
Claim Your Seller Account
Fluoropolymer Spiral L-Shaped Heaters - HXL Series
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

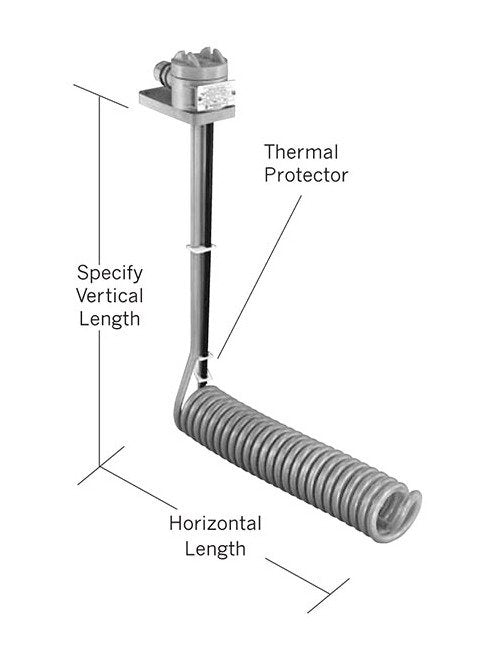

The HXL Series Fluoropolymer (PTFE) Heaters are designed for precision heating applications, offering a power output of 4000W with a watt density of 10 W/in². With a hot zone of 20" and a standard vertical length of 18", these heaters ensure efficient heat transfer. Certified by CE, CSA, and UL, these heaters come with replaceable thermal protectors for varying solution temperatures. Recommended guards ensure safety, with polypropylene as standard and PTFE guards for specific chemical solutions. Consult factory for flexible risers and longer lengths to customize to your needs.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HXL20-R*G
Specifications Hot Zone
20 " | 508 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Max Cold Zone
40 " | 1016 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Phase
Single
Specifications Series
HXL Series
Specifications Shipping Weight
15.0 Pound
Specifications Standard Vertical Length
18 " | 457 mm
Specifications Volts
480 V
Specifications Watts
4000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
15.0 lbs | 6.8 kg
