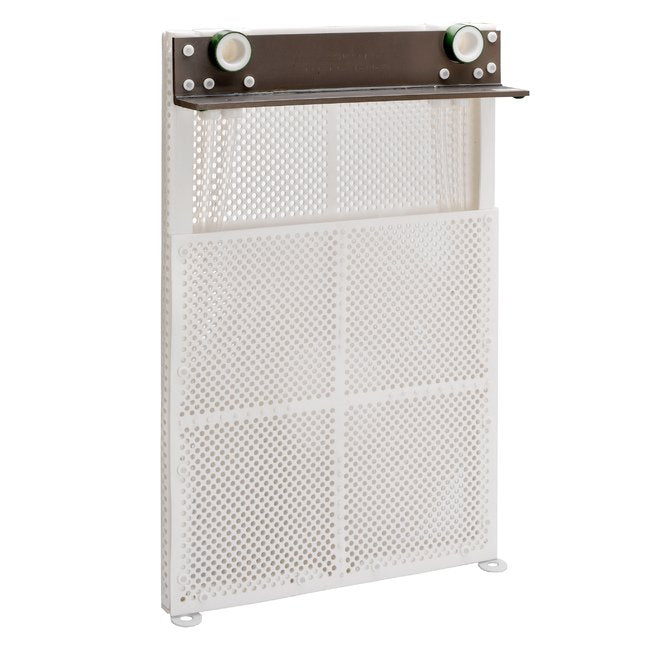

Fluoropolymer X-Series Heat Exchanger
Fluoropolymer X-Series Heat Exchanger
SKU:HEA-941c40
Rugged, efficient, and reliable Fluoropolymer X-Series Heat Exchanger with superior chemical compatibility and leak-free operation.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Fluoropolymer X-Series Heat Exchanger
$899.99
Quantity: 1
Claim Your Seller Account
Fluoropolymer X-Series Heat Exchanger
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Fluoropolymer X-Series Heat Exchanger features a robust design that eliminates stray currents in tanks, ensuring excellent chemical compatibility. Constructed with FEP, PFA, or PTFE fluoropolymer components, it offers outstanding performance with a heavy-duty CPVC mounting bracket. With a pressure rating of up to 60 PSI for steam service, integral inlet/outlet connections for leak-free operation, and options like anti-floatation brackets and special manifold connections, this heat exchanger is designed for rugged use while maintaining efficiency and reliability.
Product Specifications
Features And Benefits Features And Benefits
RUGGED CONSTRUCTION: All wetted parts of fluoropolymer (FEP, PFA or PTFE) construction with a heavy duty CPVC mounting bracket. Heavy duty CPVC mounting bracket. OUTSTANDING PERFORMANCE: Heavy wall tubing improves circulation and minimizes pressure drop. Larger coils constructed of 1/2 inch (13 mm) tubing, smaller coils have 1/4 inch (7 mm) tubing. LEAK FREE OPERATION: Integral inlet and outlet manifolds for single point connections greatly reduce the potential for leaks and simplify installation. NON-CONDUCTIVE: Eliminates stray currents in the tank. PRESSURE RATING: Standard coils are made from FEP (Fluorinated Ethylene Propylene) and rated up to 30 PSI steam service. PFA (Perfluoroakoxy resin) coils are available for steam service up to 60 PSI. 10 PSI minimum steam pressure required for operation. SIZES: 2.25 ft2 to 46.5 ft2 of exchange area standard. OPTIONS AVAILABLE (consult factory): Anti-floatation brackets. Special manifold connections. Custom and bottom style configurations. Dual coils for both heating and cooling.
Note Note
Vacuum breakers recommended for fluoropolymer heat exchanger steam heating installations. Please consult factory regarding pressure reduced steam applications.
Specifications Connections
1" FNPT
Specifications Dimension A
23-1/2 " | 597 mm
Specifications Dimension B
23-1/2 " | 597 mm
Specifications Dimension C
2 " | 51 mm
Specifications Dimension D
29-1/2 " | 749 mm
Specifications Exchange Area
11.5 ft²
Specifications Manufacturer
Process Technology
Specifications Shipping Weight
24.0 Pound
Specifications Tubing Diameter
1/2 " | 13 mm
Specifications Weight
24.0 lbs | 10.9 kg
