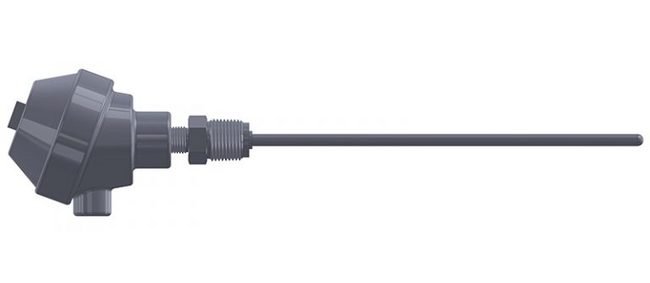

The Explosion Proof Approved Fixed Element Resistance Temperature Detector (RTD) Assemblies are specifically designed for hazardous areas in the U.S. and Canada. With FM and CSA approvals, these assemblies meet XP Class I, Division 1, Group A-D, DIP Class II, Division I, Groups E-G, and Class III, Division 1 standards. Featuring 316 stainless steel sheaths in various diameters, these assemblies can be directly installed into processes without a thermowell. Choose from aluminum or stainless steel explosion proof connection heads for added safety and reliability.
Product Specifications
Specifications 100 Ohm Platinum Resistance Temperature Detector
Duplex - RTD/RTD | Single - RTD
Specifications Agency Approval
XP - FM/CSA Explosion Proof Approved Assembly
Specifications Element Connection
2 - 2 Wire Element | 3 - 3 Wire Element | 4 (Not Available in Duplex or with 440 Series Transmitter) - 4 Wire Element
Specifications Industry Standards
CSA File #217989; | FM Approved
Specifications Initial Element Accuracy At 0 Degree Celsius C Te
0.1 %
Specifications Low Range Wire Wound Temperature
-200 to 204 ºC
Specifications Options
I - Stainless Steel Tag | SB - 1/2 in. NPT Conduit Reducer Bushing | TR - (4 to 20) mA Heat-Mounted Transmitter
Specifications Sheath Diameters
28 (Not Available in Duplex) - 1/8 | 38 - 3/16 | 48 - 1/4 | 68 - 3/8
Specifications Sheath Mounting Fitting
00 - No Fitting
Specifications Sheath Terminations
71 - Cast Iron/Aluminum Explosion Proof Head Group C with 1/2 in. NPT SS Hex Nipple | 72 - DIN Form B Aluminum Explosion Proof Head Group B with 1/2 in. NPT SS Hex Nipple | 74 - DIN Form B Aluminum Explosion Proof Head Group A with 1/2 in. NPT SS Hex Nipple | 81 - 316L Stainless Steel Explosion Proof Head Group C with 1/2 in. NPT SS Hex Nipple | 82 - DIN Form B 316 Stainless Steel Explosion Proof Head Group B with 1/2 in. NPT SS Hex Nipple

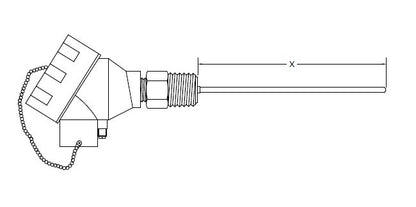

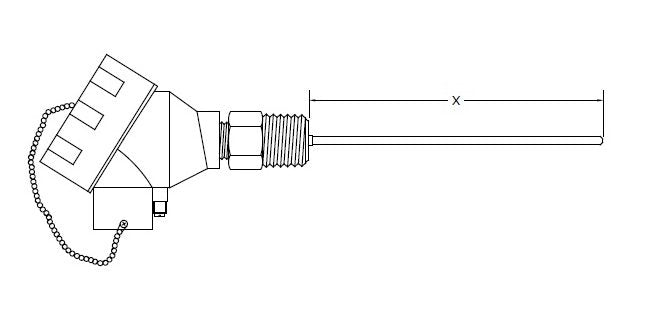

Specifications X Dimensions
Insert Three Digit Sheath Length ("X" Dimension) in Inches
