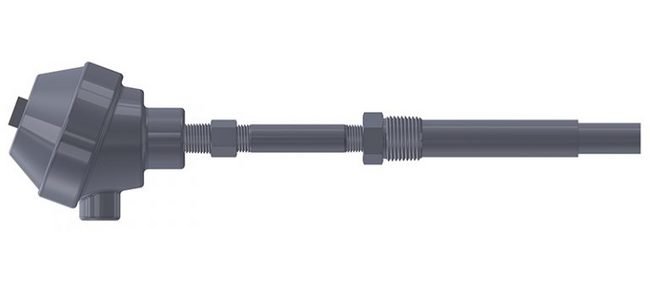

The FM/CSA Approved Explosion Proof RTD Assemblies with Thermowells are engineered for use in hazardous areas in the U.S. and Canada. They are meticulously designed to eliminate the risk of ignition in flammable atmospheres, meeting XP Class I, Division 1 standards. These assemblies feature 316 stainless steel sheaths and are available with aluminum or stainless steel explosion-proof connection heads. With an Agency approval rating for FM/CSA Explosion Proof, these RTD assemblies offer unparalleled safety and reliability, ensuring precise temperature monitoring in challenging environments.
Product Specifications
Specifications 100 Ohm Platinum Resistance Temperature Detector
Duplex - RTD/RTD | Single - RTD
Specifications Agency Approval
XP - FM/CSA Explosion Proof Approved Assembly
Specifications Element Connection
2 - 2 Wire Element | 3 - 3 Wire Element | 4 (Not Available in Duplex or with 440 Series Transmitter) - 4 Wire Element
Specifications Industry Standards
CSA File #217989; | FM Approved
Specifications Initial Element Accuracy At 0 Degree Celsius C Te
0.1 %
Specifications Low Range Wire Wound Temperature
-200 to 204 ºC
Specifications Options
I - Stainless Steel Tag | SB - 1/2 in. NPT Conduit Reducer Bushing | TR - (4 to 20) mA Heat-Mounted Transmitter
Specifications Sheath Diameters
28 (Not Available in Duplex) - 1/8 | 38 - 3/16 | 48 - 1/4 | 68 - 3/8
Specifications Sheath Mounting Fitting
00 - No Fitting
Specifications Sheath Terminations
71 - Cast Iron/Aluminum Explosion Proof Head Group C with 1/2 in. NPT SS Hex Nipple | 72 - DIN Form B Aluminum Explosion Proof Head Group B with 1/2 in. NPT SS Hex Nipple | 74 - DIN Form B Aluminum Explosion Proof Head Group A with 1/2 in. NPT SS Hex Nipple | 81 - 316L Stainless Steel Explosion Proof Head Group C with 1/2 in. NPT SS Hex Nipple | 82 - DIN Form B 316 Stainless Steel Explosion Proof Head Group B with 1/2 in. NPT SS Hex Nipple
Specifications X Dimensions
Insert Three Digit Sheath Length ("X" Dimension) in Inches
