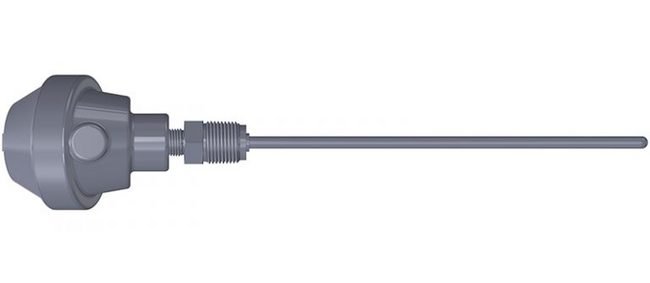

Acrolab's Explosion Proof Approved Fixed Element Thermocouple Assemblies are designed for U.S. and Canadian hazardous areas, ensuring safety by extinguishing internal flames. These assemblies meet XP Class I, Division 1 specifications and feature 316 stainless steel sheaths with various diameter options. With options for different thermocouple types and element connections, these assemblies come with aluminum or stainless steel explosion proof connection heads. Ideal for direct installation into processes without thermowells, they offer reliable performance for industrial applications.
Product Specifications
Specifications Agency Approval
XP - FM/CSA Explosion Proof Approved Assembly
Specifications Element Connection
2 - 2 Wire Element | 3 - 3 Wire Element | 4 (Not Available in Duplex or with 440 Series Transmitter) - 4 Wire Element
Specifications Industry Standards
CSA File #217989; | FM Approved
Specifications Options
I - Stainless Steel Tag | SB - 1/2 in. NPT Conduit Reducer Bushing | TR - (4 to 20) mA Heat-Mounted Transmitter
Specifications Sheath Diameters
28 (Not Available in Duplex) - 1/8 | 38 - 3/16 | 48 - 1/4 | 68 - 3/8
Specifications Sheath Mounting Fitting
00 - No Fitting
Specifications Sheath Terminations
71 - Cast Iron/Aluminum Explosion Proof Head Group C with 1/2 in. NPT SS Hex Nipple | 72 - DIN Form B Aluminum Explosion Proof Head Group B with 1/2 in. NPT SS Hex Nipple | 74 - DIN Form B Aluminum Explosion Proof Head Group A with 1/2 in. NPT SS Hex Nipple | 81 - 316L Stainless Steel Explosion Proof Head Group C with 1/2 in. NPT SS Hex Nipple | 82 - DIN Form B 316 Stainless Steel Explosion Proof Head Group B with 1/2 in. NPT SS Hex Nipple
Specifications Thermocouple Types
Single E - Double EE | Single J -Double JJ | Single K - Double KK | Single T - Double TT

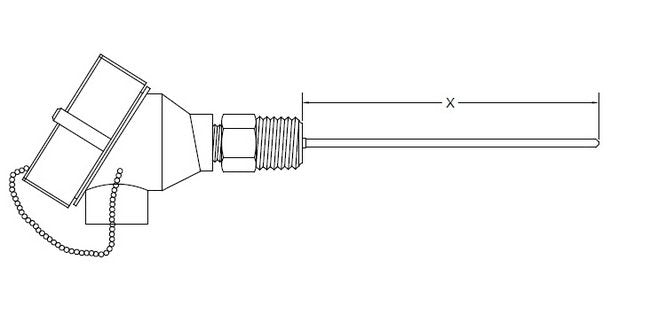

Specifications X Dimensions
Insert Three Digit Sheath Length ("X" Dimension) in Inches
