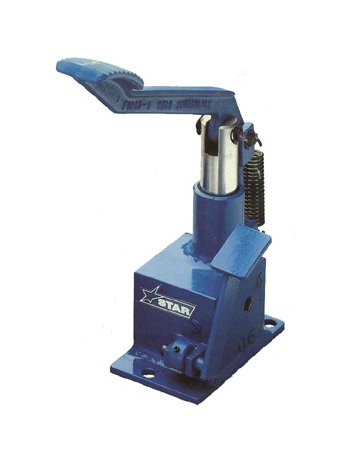

Foot Operated Hydraulic Pumps - FCP-LR & FCP-PL Series
Foot Operated Hydraulic Pumps - FCP-LR & FCP-PL Series
SKU:HYD-294f55
High-performance 2-speed hydraulic pumps without reservoirs, ideal for equipment with built-in reservoirs, offering rapid movement at low pressure and automatic switch to high pressure when needed.
Regular price
$856.00
Regular price
Sale price
$856.00
Unit price
per
Initiate Order
Foot Operated Hydraulic Pumps - FCP-LR & FCP-PL Series
$856.00
Quantity: 1
Claim Your Seller Account
Foot Operated Hydraulic Pumps - FCP-LR & FCP-PL Series
$856.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Foot Operated Hydraulic Pumps - FCP-LR & FCP-PL Series without Reservoirs are essential for equipment with built-in reservoirs. These 2-speed pumps offer rapid movement at low pressure during light work, automatically switching to high pressure for maximum force delivery. Featuring adjustable overload and manual pressure release valves, steel pump bodies, hard chrome plated pistons, and a maximum pressure rating of 5000 psi, these pumps ensure reliable performance. With base or flange mounting options, stainless steel construction, and the option for customer-specified overload relief valve settings, these pumps are versatile and durable for a wide range of applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Adjustable Overload Relief Valve
Yes
Specifications Body Material
Steel
Specifications Foot Lever Load Per 1000 Psi
23.0 lb
Specifications Inlet Port Size Nptf
3/8
Specifications List Price
856 USD
Specifications Manual Pressure Release Valve
Yes
Specifications Maximum Pressure Rating
5000 psi
Specifications Mounting
Base Mounted
Specifications Net Weight
23 lb
Specifications Oil Reservoir
false
Specifications Operating Lever Size
24 in
Specifications Outlet Port Size Nptf
3/8
Specifications Piston
Hard Chrome Plated
Specifications Piston Diameter
1 1/2-1/2 in
Specifications Series
FCP-LR
Specifications Volume Per Stroke Large Piston To 300 Psi Approx
2.65 in³
Specifications Volume Per Stroke Small Piston Above 300 Psi Appr
0.29 in³
Technical Information 0
Limited WarrantyAll Star pumps are covered by a limited warranty on materials and workmanship for one year from the date of manufacture. Star will repair or replace at its option any pump in which Star finds manufacturing defects. In order to get warranty service a pump must be returned to the Star plant freight prepaid with a written explanation of the problem.Technical DataLight hydraulic oil is recommended for use with Star pumps. Oils with SUS viscosity of 75 to 150 at 100 degrees Fahrenheit will give satisfactory performance (ISO grade 15, 22, or 32). In an emergency situation when the above oils are not available, use 5 W or 10 W motor oil or automatic transmission fluid.All exposed surfaces of standard Star pumps are painted with one coat of industrial quality paint. Pumps painted with special colors with two coat finishes, or with prime coat only, and pumps with special plated or polished parts, are also available.
