Foredom 3/32 Inch Brushless Kit with HP4-817 Control Box
Foredom 3/32 Inch Brushless Kit with HP4-817 Control Box
SKU:KIT-ed4113
High-speed, high-torque Foredom 3/32 Inch Brushless Kit with LED Control Box for precision detailing and grinding tasks. Ideal for metal and woodworking applications.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Foredom 3/32 Inch Brushless Kit with HP4-817 Control Box
$599.99
Quantity: 1
Claim Your Seller Account
Foredom 3/32 Inch Brushless Kit with HP4-817 Control Box
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

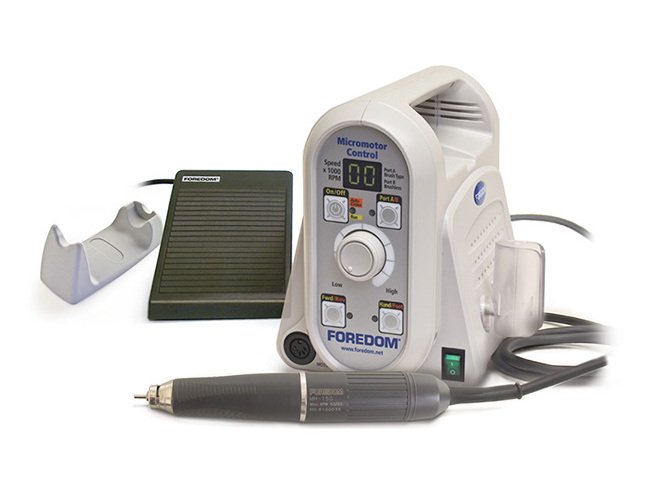

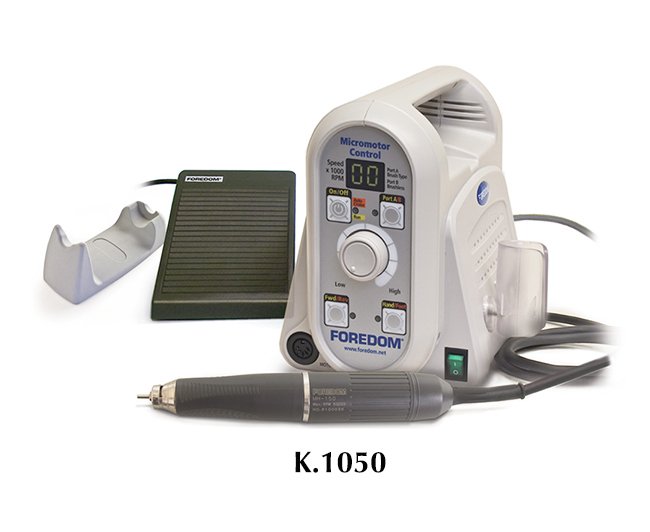

The Foredom 3/32 Inch Brushless Kit is a high-speed, high-torque tool designed for precise detailing, grinding, finishing, and polishing in metal and woodwork. With a maximum torque of 10 oz·in and speeds ranging from 0 to 50,000 RPM, this kit offers exceptional control and power. The brushless handpiece ensures longevity and eliminates the need for motor brush replacements. The HP4-817 Control Box features LED display, precise speed and torque settings, and overload protection. Ideal for jewelry making, dental labs, and industrial applications, this kit comes with a 2-year warranty for added peace of mind.
Product Specifications
Additional Information Additional Information
Maximum Torque or Watts Output 10 oz. in or 70mNm or 230W even at minimum speedsSealed housing eliminates dust, noise, and vibrationOne port on back of control box for Brushless Handpiece and One on front for Brush Type Micromotor Handpiece
Hp4 817 Control Box With Light Emitting Diode Led Specifications
50/60 Hz, 100VA, 5.4â³ wide, 9.1â³ deep, 7â³ high with built in overload protectionDials set precise speed and torque, auto cruise, forward or reverse rotation, dial or foot speed controlDigital display for precise speed and torque settingsH.MH-150 Brushless Handpiece/Motor6.3â³ long, 1.06â³ motor diameter, 0.75â³ grip diameter, 8.4 oz/237.7 gr., 115 voltErgonomic and brushless with long-lasting ceramic ball bearingsQuick and easy bur changes with a simple twist of the front of the HandpieceChose from 2.35mm (3/32â³) or 1/8â³ collet.
Technical Specs Brands
Foredom
Technical Specs Collet Size
1/8 in | 3/32 in | 2.35 mm
Technical Specs Control Unit Depth
9.1 in
Technical Specs Control Unit Grip Diameter
0.75 in
Technical Specs Control Unit Height
7 in
Technical Specs Control Unit Motor Diameter
1.06 in
Technical Specs Control Unit Width
5.4 in
Technical Specs Current
100 V·A
Technical Specs Frequency
50 to 50 Hz | 60 Hz
Technical Specs Hp7 7060 Foot Speed Control
Variable speed foot control works with control box HP4-717. Varies speed from 1,000 - 50,000 RPM.
Technical Specs Maximum Torque
10 oz·in | 70 mNm
Technical Specs Size
3/32 in
Technical Specs Speed
0 to 50,000 rpm
Technical Specs Voltage
115 V
Technical Specs Warranty
2 year
Technical Specs Wattage
230 W
