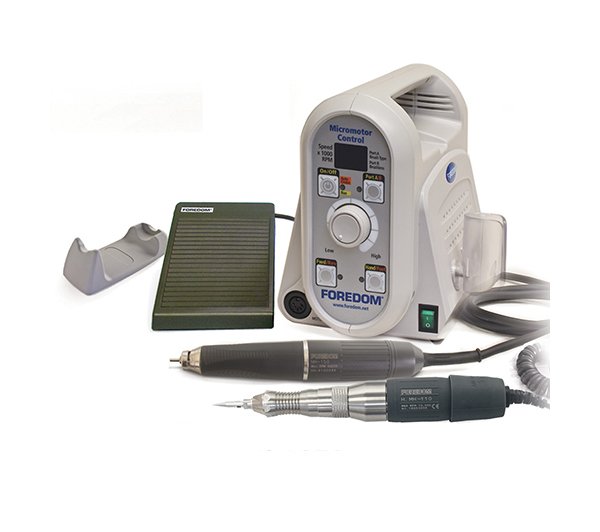

Foredom Dual Handpiece Kit with Brushless 1/8" Collet Rotary & Hammer Handpieces
Foredom Dual Handpiece Kit with Brushless 1/8" Collet Rotary & Hammer Handpieces
SKU:KIT-83bbab
Enhance precision and performance with the Foredom Dual Handpiece Kit for jewelry making, dental labs, and industrial operations.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Foredom Dual Handpiece Kit with Brushless 1/8" Collet Rotary & Hammer Handpieces
$699.99
Quantity: 1
Claim Your Seller Account
Foredom Dual Handpiece Kit with Brushless 1/8" Collet Rotary & Hammer Handpieces
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Foredom Dual Handpiece Kit is a versatile solution designed for industrial operations in jewelry making, dental laboratories, and more. It features a brushless rotary handpiece with virtually vibration-free operation, offering high torque from 1,000 to 50,000 rpm. The hammer handpiece operates at 1,000 to 2,500 strokes per minute, ideal for stone setting and engraving. With a sophisticated control box, digital display, variable speed foot pedal, and sealed housing for dust and noise reduction, this kit ensures precise control and powerful performance. Backed by a two-year warranty, this kit caters to the demanding needs of professional settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Hmh 150 Brushless Handpiecemotor Specifications And Features Hmh
6.3â³ long, 1.06â³ motor diameter, 0.75â³ grip diameter, 8.4 oz/237.7 gr., 115 voltErgonomic and brushless with long-lasting ceramic ball bearingsBur changes are quick and easy with a simple twist of the front section of the Handpiece
Hp4 817 Control Box And Front Panel Light Emitting Diode Led Spe
Dial speed control sets precise speed and torqueAuto cruise, Forward or Reverse rotation, Dial or Foot speed controlDigital display for precise speed and torque settingsBuilt in overload protectionBrushless micromotor handpiece connects to port on back side of control boxBrush type handpiece connects to port in front.
Hpmh 011 Brush Type Hammer Handpiecemotor Specifications And Fea
This Hammer Action micromotor is ideal for stone setting applications and engraving techniques. It has a slender contoured grip and impact adjustment ring for precise hammering work. Operates from 0-2,500 strokes per minute. The force of the impact of the MH-011 reciprocating handpiece can be adjusted from light to full by turning the metal ring while the motor is off or running. The speed of the hammer action can also be varied from 0-2,500 strokes per minute with the dial on the control unit. Used with the supplied Graver Holder, the handpiece becomes a precision power engraver- no need for an air compressor or a flexible shaft drive.
Overall Product Features Overall Product Features
Two Year Limited WarrantyBrushless handpiece motor design means carbon brushes NEVER need changingMaximum Torque or Watts Output 10 oz. in or 70mNm or 230W. Powerful even at minimum speedsSealed housing eliminates dust, noise, and vibrationAdditional port for Brush Type Micromotor Handpiece:This brushless micromotor is ideal for various applications at high, medium and low speed.
Technical Specs Brands
Foredom
Technical Specs Brush Type Hammer Handpiecemotor Diameter
1 in
Technical Specs Brush Type Hammer Handpiecemotor Grip Diameter
9/16 in
Technical Specs Collet Size
1/8 in
Technical Specs Control Unit Depth
9.1 in
Technical Specs Control Unit Grip Diameter
0.75 in
Technical Specs Control Unit Height
7 in
Technical Specs Control Unit Motor Diameter
1.06 in
Technical Specs Control Unit Width
5.4 in
Technical Specs Current
100 V·A
Technical Specs Current At 115 Volt V Voltage
1.5 A
Technical Specs Current At 230 Volt V Voltage
0.75 A
Technical Specs Frequency
50 to 50 Hz | 60 Hz
Technical Specs Maximum Torque
10 oz·in | 70 mNm
Technical Specs Overall Length
6-1/4 in
Technical Specs Size
1/8 in
Technical Specs Warranty
2 year
Technical Specs Wattage
230 W
