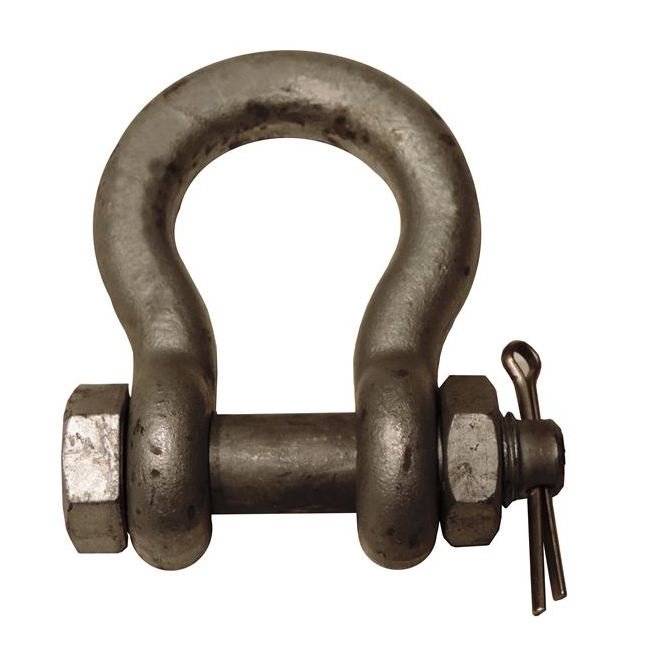

Forged Bow Type Shackles Hot Dip Galvanized
Forged Bow Type Shackles Hot Dip Galvanized
SKU:WIR-fe24cc
Durable Forged Bow Type Shackles meeting Federal Specification RR-C-271D standards for safe lifting and towing.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Forged Bow Type Shackles Hot Dip Galvanized
$24.99
Quantity: 1
Claim Your Seller Account
Forged Bow Type Shackles Hot Dip Galvanized
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Forged Bow Type Shackles Hot Dip Galvanized is meticulously crafted to meet stringent Federal Specification RR-C-271D, Type IVA or Type IVB, Grade A, Class 3 standards. Designed for durability and safety, this shackle boasts a proof load of 2.2 times the working load limit and an ultimate load of 6 times the working load limit. Ideal for wire rope loops, lifting, and towing applications.

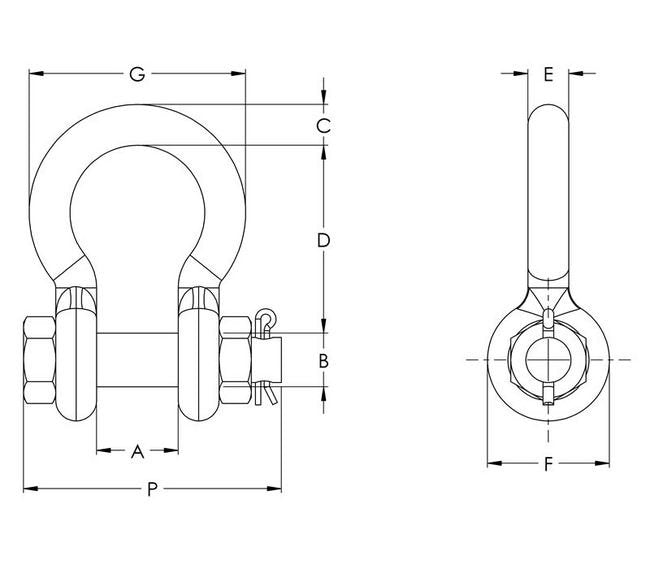

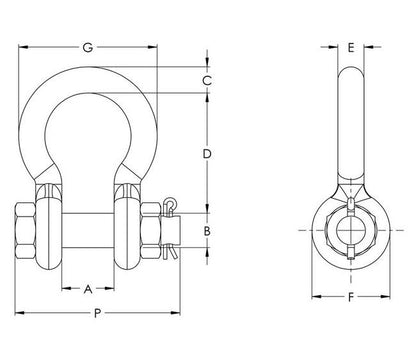

Product Specifications
Specifications A In
.47
Specifications B In
.31
Specifications Cross Reference
SAS14
Specifications C In
.25
Specifications D In
1.13
Specifications E In
.25
Specifications F In
.61
Specifications G In
1.28
Specifications Nominal Size In
1/4
Specifications P In
1.56
Specifications Weight Lbs
.11
Specifications Wll Tons
1/2
CAGE
0T9L4
NAICS
332999
PSC
5340
