Forged Brass Ball Valve - Full Port Chrome Plated
Forged Brass Ball Valve - Full Port Chrome Plated
SKU:VAL-19e160
Reliable maintenance-free Forged Brass Ball Valve featuring double O-ring stem seals, vented ball, and PTFE seats for high-pressure applications. CSA, UL, and FM certified.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Forged Brass Ball Valve - Full Port Chrome Plated
$69.99
Quantity: 1
Claim Your Seller Account
Forged Brass Ball Valve - Full Port Chrome Plated
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Forged Brass Ball Valve boasts a maintenance-free design with double O-ring stem seals and blowout-proof stem for enhanced durability. Featuring a two-piece forged brass body, vented ball, and PTFE seats, this valve ensures reliable performance under high pressure and temperature conditions. Certified to CSA, UL, and FM standards, this valve meets stringent industry requirements, offering peace of mind for both consumer and institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

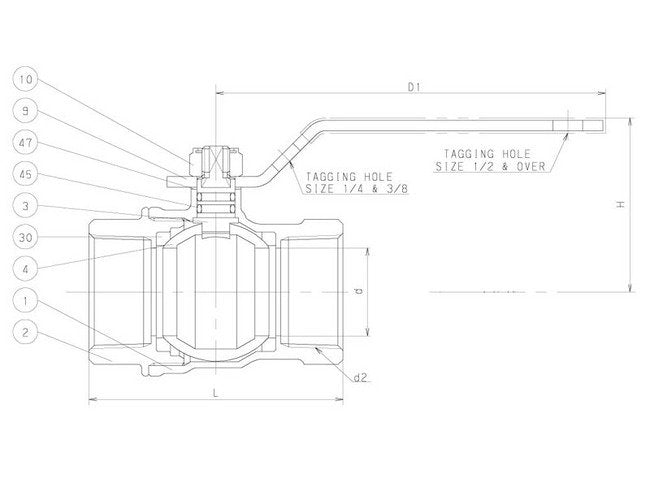

Material List 0
No. Name of Part Specification 1 Body Forged Brass (B283, C37700) 2 Body Cap Forged Brass (B283, C37700) 3 Stem Brass Rod (B16) (Ni Plating) 4 Ball (Vented) Forged Brass (B283, C37700) (CR. Plating) Straight or Hollow Ball 9 Handle Carbon Steel (Electroplated Zinc with Plastic Covering) 10 Handle Nut Carbon Steel 30 Ball Seats PTFE 45 O-rings FPM 47 Thrust Washer PBT
Specifications Approx Net Wt
71.00
Specifications Carton Qty
16
Specifications Class
AKSZA
Specifications Dimension D
1.97
Specifications Dimension D1
5.90
Specifications Dimension D1 Max
2.133
Specifications Dimension D1 Min
2.128
Specifications Dimension D2
2 inches
Specifications Dimension H
2.83
Specifications Dimension L
4.33
Specifications Dimension L1
2.83
Specifications End Size
Threaded
Specifications Material
Brass
Specifications Pressuretemperature
150 PSI - Saturated Steam to 366°F | 600 PSI - Non-Shock Cold Water, Oil or Gas
Specification 0
Approved valve shall have two piece forged brass body, blowout proof stem (Ni Plated), PTFE seats, maintenance free double o-ring stem seals, chrome plated ball and full port design. Valves shall be pressure rated to 150 WSP/600 WOG and conform to MSS-SP 110 and certified to CSA, UL & FM.KITZ Code No. 58 (AKSZA) Threaded Ends59 (CSZA) Solder Ends
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Wall Thickness KITZ Conforms to MSS-SP 110 - Replaces us. FED.Spec. WWW-V-35B, Type II, Class A, Style 3
