Forged Brass Ball Valve - Full Port, CSA/UL/FM Certified
Forged Brass Ball Valve - Full Port, CSA/UL/FM Certified
SKU:VAL-c314ce
High-performance Forged Brass Ball Valve with full port design, CSA/UL/FM certified for reliability and durability.
Regular price
$84.99
Regular price
Sale price
$84.99
Unit price
per
Initiate Order
Forged Brass Ball Valve - Full Port, CSA/UL/FM Certified
$84.99
Quantity: 1
Claim Your Seller Account
Forged Brass Ball Valve - Full Port, CSA/UL/FM Certified
$84.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Forged Brass Ball Valve is a top-of-the-line solution featuring maintenance-free double O-ring stem seals, a two-piece body, full port design, and a vented ball with chrome plating. With a blowout-proof stem (Ni Plated) and PTFE seats, this valve is pressure rated for a maximum of 150 PSI for saturated steam up to 366°F and 600 PSI for non-shock cold water, oil, or gas applications. Crafted from high-quality materials including forged brass and brass rod, this valve ensures durability and reliability. Certified to CSA, UL, and FM standards, it meets industry benchmarks for performance and safety.
Product Specifications

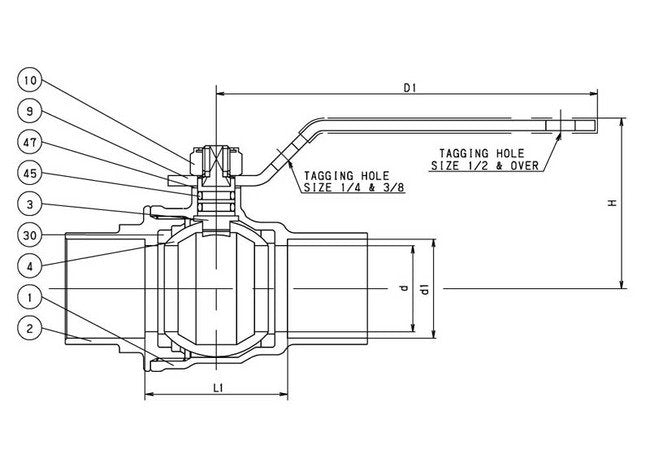

Material List 0
No. Name of Part Specification 1 Body Forged Brass (B283, C37700) 2 Body Cap Forged Brass (B283, C37700) 3 Stem Brass Rod (B16) (Ni Plating) 4 Ball (Vented) Forged Brass (B283, C37700) (CR. Plating) Straight or Hollow Ball 9 Handle Carbon Steel (Electroplated Zinc with Plastic Covering) 10 Handle Nut Carbon Steel 30 Ball Seats PTFE 45 O-rings FPM 47 Thrust Washer PBT
Specifications Approx Net Wt
50.00
Specifications Carton Qty
16
Specifications Class
CSZA
Specifications Dimension D
1.57
Specifications Dimension D1
5.90
Specifications Dimension D1 Max
1.633
Specifications Dimension D1 Min
1.628
Specifications Dimension D2
1 1/2 inches
Specifications Dimension H
2.52
Specifications Dimension L
3.62
Specifications Dimension L1
2.35
Specifications End Size
Solder
Specifications Material
Brass
Specifications Pressuretemperature
150 PSI - Saturated Steam to 366°F | 600 PSI - Non-Shock Cold Water, Oil or Gas
Specification 0
Approved valve shall have two piece forged brass body, blowout proof stem (Ni Plated), PTFE seats, maintenance free double o-ring stem seals, chrome plated ball and full port design. Valves shall be pressure rated to 150 WSP/600 WOG and conform to MSS-SP 110 and certified to CSA, UL & FM.KITZ Code No. 58 (AKSZA) Threaded Ends59 (CSZA) Solder Ends
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Wall Thickness KITZ Conforms to MSS-SP 110 - Replaces us. FED.Spec. WWW-V-35B, Type II, Class A, Style 3
