Forged Brass Ball Valve - Full Port Valve for Hose Beds
Forged Brass Ball Valve - Full Port Valve for Hose Beds
SKU:VAL-497e78
Durable Forged Brass Ball Valve with full port design, PTFE seats, and corrosion-resistant chrome-plated ball. CSA, UL, FM certified.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Forged Brass Ball Valve - Full Port Valve for Hose Beds
$49.99
Quantity: 1
Claim Your Seller Account
Forged Brass Ball Valve - Full Port Valve for Hose Beds
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Forged Brass Ball Valve is a durable and reliable valve designed for a wide range of applications. Featuring maintenance-free double O-ring stem seals and a blowout-proof stem with Ni Plating, this valve ensures long-term performance and safety. The full port design, PTFE seats, and vented chrome-plated ball guarantee optimal flow control and corrosion resistance. With a pressure rating of 150 PSI for saturated steam up to 366°F and 600 PSI for non-shock cold water, oil, or gas, this valve meets stringent industry standards including CSA, UL, and FM certifications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

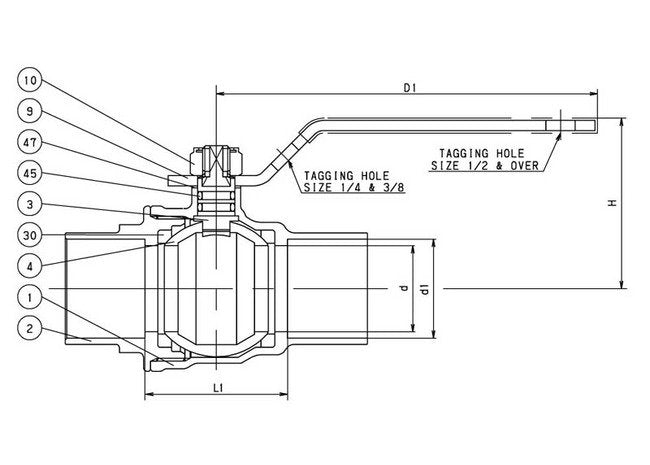

Material List 0
No. Name of Part Specification 1 Body Forged Brass (B283, C37700) 2 Body Cap Forged Brass (B283, C37700) 3 Stem Brass Rod (B16) (Ni Plating) 4 Ball (Vented) Forged Brass (B283, C37700) (CR. Plating) Straight or Hollow Ball 9 Handle Carbon Steel (Electroplated Zinc with Plastic Covering) 10 Handle Nut Carbon Steel 30 Ball Seats PTFE 45 O-rings FPM 47 Thrust Washer PBT
Specifications Approx Net Wt
60.00
Specifications Carton Qty
36
Specifications Class
CSZA
Specifications Dimension D
0.98
Specifications Dimension D1
4.33
Specifications Dimension D1 Max
1.132
Specifications Dimension D1 Min
1.128
Specifications Dimension D2
1 inches
Specifications Dimension H
1.97
Specifications Dimension L
2.83
Specifications Dimension L1
1.64
Specifications End Size
Solder
Specifications Material
Brass
Specifications Pressuretemperature
150 PSI - Saturated Steam to 366°F | 600 PSI - Non-Shock Cold Water, Oil or Gas
Specification 0
Approved valve shall have two piece forged brass body, blowout proof stem (Ni Plated), PTFE seats, maintenance free double o-ring stem seals, chrome plated ball and full port design. Valves shall be pressure rated to 150 WSP/600 WOG and conform to MSS-SP 110 and certified to CSA, UL & FM.KITZ Code No. 58 (AKSZA) Threaded Ends59 (CSZA) Solder Ends
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Wall Thickness KITZ Conforms to MSS-SP 110 - Replaces us. FED.Spec. WWW-V-35B, Type II, Class A, Style 3
