Forged Series Eye Socket Fitting for Architectural Cable Railings
Forged Series Eye Socket Fitting for Architectural Cable Railings
SKU:ARC-aee6e8
Premium Forged Series Eye Socket Fitting for secure wire rope installations in architectural cable railings.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Forged Series Eye Socket Fitting is a premium component designed for wire ropes and aircraft cables in architectural cable railing systems. Crafted from self-colored steel, this fitting ensures durability and reliability. With a Wire Rope Diameter of 3/8", EIPS Breaking Strength of 15,100#, and precise dimensions, it guarantees secure installations that meet the highest safety standards. Ideal for both consumer and institutional projects, this fitting combines strength and aesthetics seamlessly.

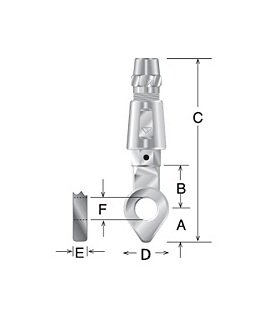

Product Specifications
Specifications Dimensions F
21/32 "
Specifications Dim A
1-1/16 "
Specifications Dim B
1-3/8 "
Specifications Dim C
5-1/2 "
Specifications Dim D
1-5/16 "
Specifications Dim E
9/16 "
Specifications Eips Breaking Strength
15,100#
Specifications Material Finish
Self-Colored Steel
Specifications Series
Forged
Specifications Wire Rope Dia
3/8 "
CAGE
0T9L4
NAICS
332510
PSC
4030
