Forged Series Towing Eye Fitting for Architectural Cable Railings

Name: Forged Series Towing Eye Fitting for Architectural Cable Railings
Brand: Lexco Cable Manufacturing
SKU: ARC-c9be41
Price: 29.99 USD
Availability: OutOfStock

SKU:ARC-c9be41

Durable Forged Series Towing Eye Fitting for secure wire rope installations. Self-Colored Steel. 1-1/8" Dia. EIPS Breaking Strength 130,000#.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Forged Series Towing Eye Fitting is a robust solution specifically designed for wire rope or aircraft cable installations. Crafted from self-colored steel, this fitting boasts a Wire Rope Dia. of 1-1/8", ensuring durability and reliability. With dimensions meeting institutional standards, including EIPS Breaking Strength of 130,000#, this fitting enhances safety and performance in architectural cable railings.

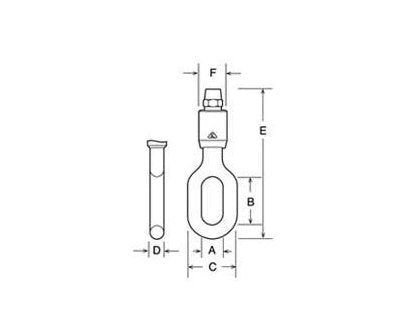

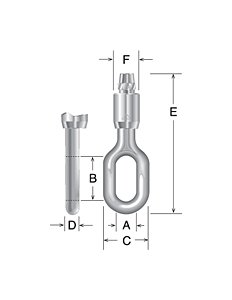

Product Specifications

Specifications Dimensions F

3-1/4 "

Specifications Dim A

1-1/2 "

Specifications Dim B

3-1/4 "

Specifications Dim C

4 "

Specifications Dim D

1-1/4 "

Specifications Dim E

15-3/8 "

Specifications Eips Breaking Strength

130,000#

Specifications Material Finish

Self-Colored Steel

Specifications Series

Forged

Specifications Wire Rope Dia

1-1/8 "

CAGE

0T9L4

NAICS

332510

PSC

4030

Forged Series Towing Eye Fitting for Architectural Cable Railings
