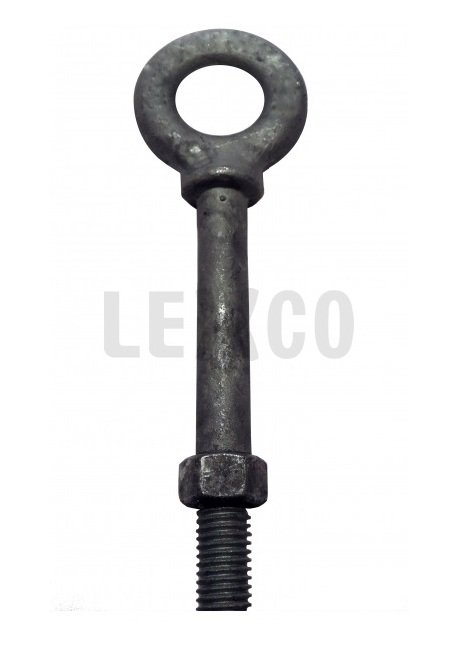

Forged Shoulder Nut Eye Bolts HDG - 5/16 x 4-1/4 in

Name: Forged Shoulder Nut Eye Bolts HDG - 5/16 x 4-1/4 in
Brand: Lexco Cable Manufacturing
SKU: WIR-5d4208
Price: 189.99 USD
Availability: OutOfStock

SKU:WIR-5d4208

Premium Forged Shoulder Nut Eye Bolts HDG - Ultimate Load 5x WLL, 800lbs

$189.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

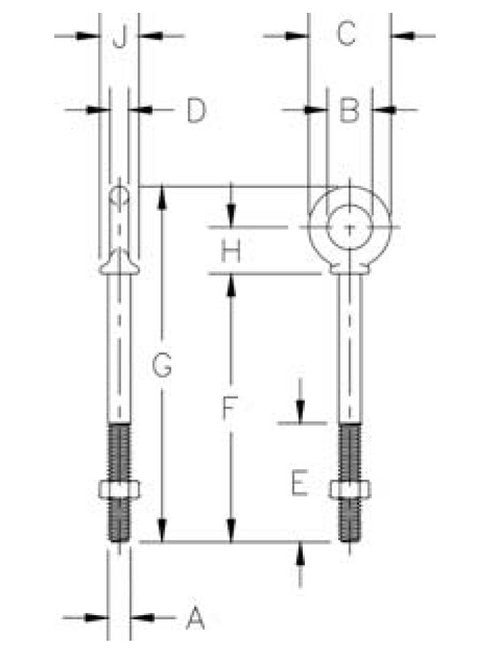

The Forged Shoulder Nut Eye Bolts HDG are crafted from hot dip galvanized forged steel, quenched and tempered for exceptional strength. With an ultimate load 5 times the working load limit of 800 lbs, these eye bolts meet rigorous standards for reliability and safety. Designed for easy attachment to cable assemblies, they feature precise dimensions A (0.31 in) through J (0.56 in), providing durability and security in various applications.

Product Specifications

Specifications A

0.31

Specifications B

0.62

Specifications C

1.25

Specifications D

0.25

Specifications E

2.50

Specifications F

4.25

Specifications G

5.50

Specifications H

0.69

Specifications J

0.56

Specifications Shank Dia Length In

5/16 x 4-1/4

Specifications Wll Lbs

800

Specifications Wt100 Pcs Lbs

18.80

CAGE

0T9L4

NAICS

332722

PSC

5306

Forged Shoulder Nut Eye Bolts HDG - 5/16 x 4-1/4 in
