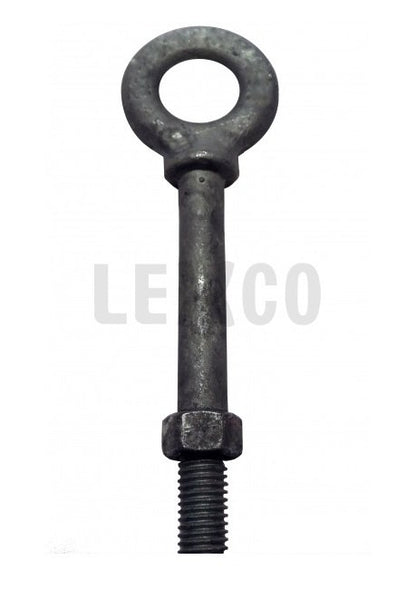

Forged Shoulder Nut Eye Bolts HDG - Import, 3/4 x 6

Forged Shoulder Nut Eye Bolts HDG - Import, 3/4 x 6

SKU:WIR-2c20d4

High-strength Shoulder Nut Eye Bolts for secure cable assembly attachment. Ultimate load 5x WLL of 5200 lbs. Durable and dependable.

Regular price $499.00
Regular price Sale price $499.00
Sale

Initiate Order

Forged Shoulder Nut Eye Bolts HDG - Import, 3/4 x 6

Forged Shoulder Nut Eye Bolts HDG - Import, 3/4 x 6

$499.00

Quantity: 1

Claim Your Seller Account

Forged Shoulder Nut Eye Bolts HDG - Import, 3/4 x 6

Forged Shoulder Nut Eye Bolts HDG - Import, 3/4 x 6

$499.00

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Forged Shoulder Nut Eye Bolts HDG - Import combine robust durability with reliable performance. Constructed from hot dip galvanized forged steel that is quenched and tempered, these eye bolts have an ultimate load five times their working load limit of 5200 lbs. With precise dimensions and a weight of 167.50 lbs per 100 pieces, they are designed for secure attachment to cable assemblies. Ideal for industrial applications requiring strength and resilience.

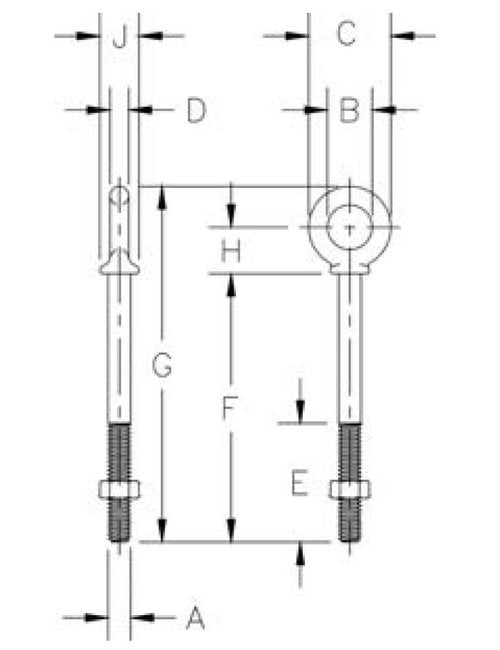

Product Specifications

Specifications A
0.75
Specifications B
1.50
Specifications C
2.75
Specifications D
0.62
Specifications E
3.00
Specifications F
6.00
Specifications G
8.94
Specifications H
1.56
Specifications J
1.38
Specifications Shank Dia Length In
3/4 x 6
Specifications Wll Lbs
5200
Specifications Wt100 Pcs Lbs
167.50
CAGE
0T9L4
NAICS
332722
PSC
5306
