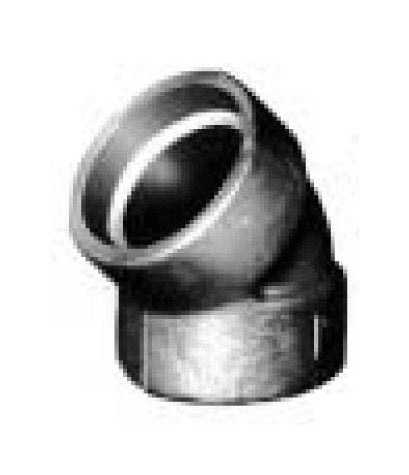

Forged Steel 45-Degree Elbow Fittings (Class 3000 Socket-Weld, 3/4")
Forged Steel 45-Degree Elbow Fittings (Class 3000 Socket-Weld, 3/4")
SKU:FIT-2cc191
High-quality Forged Steel 45-Degree Elbow Fittings for industrial piping needs. Compliant with Class 3000 standards.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Forged Steel 45-Degree Elbow Fittings (Class 3000 Socket-Weld, 3/4")
$79.99
Quantity: 1
Claim Your Seller Account
Forged Steel 45-Degree Elbow Fittings (Class 3000 Socket-Weld, 3/4")
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

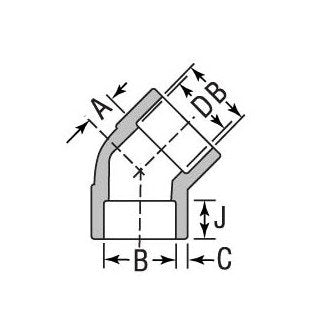

Enhance your piping system with precision-engineered Forged Steel 45-Degree Elbow Fittings. With NPS 3/4 and DN 20, these fittings ensure a secure connection with Socket Diameter B of 27mm to 28mm. Manufactured to Class 3000 standards, the elbows feature a Dimension A of 13mm, Bore Diameter D of 20mm to 22mm, and a sturdy Weight of 23kg/100 pieces. Ideal for industrial applications, these elbows meet Federal/DoD procurement standards, FAR compliance factors, and uphold industry-specific certifications.
Product Specifications
Specifications Bore Diameter D
20 mm | 22 mm
Specifications Dimension A Nominal
13 mm
Specifications Dimension C Min
4 mm
Specifications Dn
20
Specifications Minimum Socket Depth J
13 mm
Specifications Nps
3/4
Specifications Socket Diameter B
27 mm | 28 mm
Specifications Weight100 Pieces
23 kg
