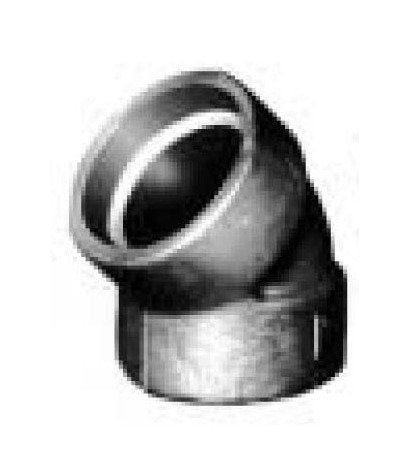

Forged Steel 45-Degree Elbows
Forged Steel 45-Degree Elbows
SKU:FIT-aa8b51
Premium Forged Steel 45-Degree Elbows, precision-engineered for secure and durable connections. Meeting NPS 1/4, DN 8 specifications, and class 3000 Socket-Weld standards.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Forged Steel 45-Degree Elbows
$129.99
Quantity: 1
Claim Your Seller Account
Forged Steel 45-Degree Elbows
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

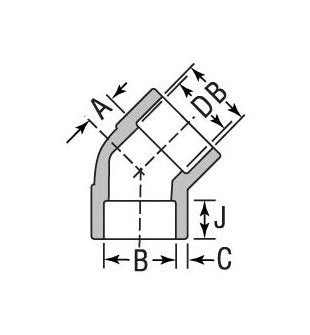

The Forged Steel 45-Degree Elbows are precision-engineered fittings suitable for a wide range of applications. With specifications meeting NPS 1/4, DN 8, and class 3000 Socket-Weld standards, these elbows ensure secure connections with their 14mm | 15mm socket diameter, 8mm | 10mm bore diameter, and 10mm minimum socket depth. Crafted for durability, the elbows feature a dimension - C (Min.) of 3mm and dimension - A (Nominal) of 8mm. Moreover, weighing 5.9 kg per 100 pieces, these fittings offer robust performance and longevity.
Product Specifications
Specifications Bore Diameter D
8 mm | 10 mm
Specifications Dimension A Nominal
8 mm
Specifications Dimension C Min
3 mm
Specifications Dn
8
Specifications Minimum Socket Depth J
10 mm
Specifications Nps
1/4
Specifications Socket Diameter B
14 mm | 15 mm
Specifications Weight100 Pieces
5.9 kg
