Forged Steel 45-Degree Elbows - Class 3000 Socket-Weld, 2" NPS

Forged Steel 45-Degree Elbows - Class 3000 Socket-Weld, 2" NPS

SKU:FIT-93cf22

Precision-engineered Forged Steel 45-Degree Elbows for industrial use. Class 3000 standard. Secure, leak-free connections.

Regular price $299.99
Regular price Sale price $299.99
Sale

Initiate Order

Forged Steel 45-Degree Elbows - Class 3000 Socket-Weld, 2" NPS

Forged Steel 45-Degree Elbows - Class 3000 Socket-Weld, 2" NPS

$299.99

Quantity: 1

Claim Your Seller Account

Forged Steel 45-Degree Elbows - Class 3000 Socket-Weld, 2" NPS

Forged Steel 45-Degree Elbows - Class 3000 Socket-Weld, 2" NPS

$299.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

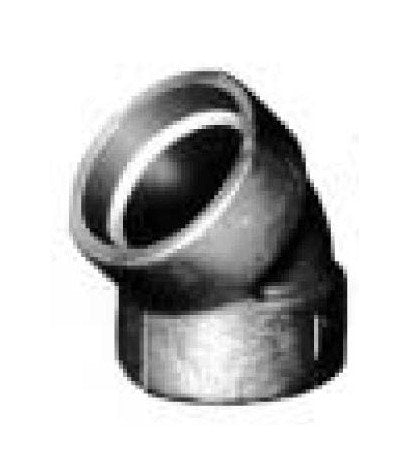

Our Forged Steel 45-Degree Elbows are precision-engineered fittings designed for industrial applications. With a Socket Diameter of 61-62mm, Bore Diameter of 52-53mm, and a Minimum Socket Depth of 16mm, these elbows ensure a secure and leak-free connection. Meeting Class 3000 standards, these elbows provide exceptional durability and performance in high-pressure environments. Weighing 122 kg per 100 pieces, they are manufactured to exacting specifications for reliability and longevity.

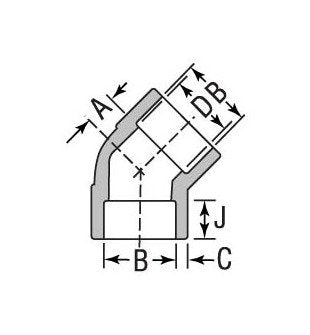

Product Specifications

Specifications Bore Diameter D
52 mm | 53 mm
Specifications Dimension A Nominal
25 mm
Specifications Dimension C Min
6 mm
Specifications Dn
50
Specifications Minimum Socket Depth J
16 mm
Specifications Nps
2
Specifications Socket Diameter B
61 mm | 62 mm
Specifications Weight100 Pieces
122 kg
