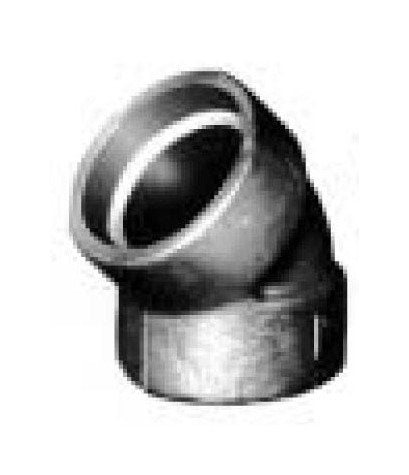

Forged Steel 45-Degree Elbows - Class 3000 Socket-Weld, NPS 4
Forged Steel 45-Degree Elbows - Class 3000 Socket-Weld, NPS 4
SKU:FIT-d9ee07
High-quality Forged Steel 45-Degree Elbows - ideal for industrial use. NPS 4, Class 3000 Socket-Weld.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
Forged Steel 45-Degree Elbows - Class 3000 Socket-Weld, NPS 4
$199.99
Quantity: 1
Claim Your Seller Account
Forged Steel 45-Degree Elbows - Class 3000 Socket-Weld, NPS 4
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

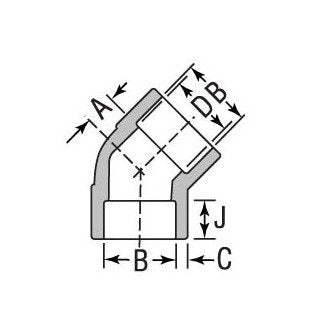

The Forged Steel 45-Degree Elbows offer superior durability and precision engineering, ideal for industrial applications. With NPS 4 size, these elbows feature Socket Diameter of 115mm | 116mm, Bore Diameter of 101mm | 104mm, and a sturdy Dimension of A (Nominal) at 41mm. Their Class 3000 Socket-Weld design ensures secure and leak-free connections, meeting the stringent quality standards of institutional buyers. Crafted for reliability, these elbows provide optimal performance in demanding environments.
Product Specifications
Specifications Bore Diameter D
101 mm | 104 mm
Specifications Dimension A Nominal
41 mm
Specifications Dimension C Min
8 mm
Specifications Dn
100
Specifications Minimum Socket Depth J
19 mm
Specifications Nps
4
Specifications Socket Diameter B
115 mm | 116 mm
Specifications Weight100 Pieces
825 kg
