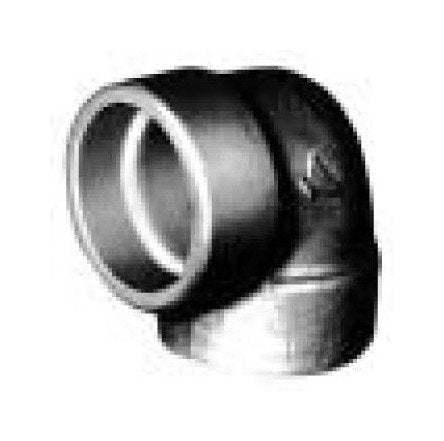

Forged Steel 90-Degree Elbows Class 3000 Socket-Weld, 1/2" NPS
Forged Steel 90-Degree Elbows Class 3000 Socket-Weld, 1/2" NPS
SKU:FIT-43d46c
Durable Forged Steel 90-Degree Elbows Class 3000 Socket-Weld for industrial piping needs.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Forged Steel 90-Degree Elbows Class 3000 Socket-Weld, 1/2" NPS
$129.99
Quantity: 1
Claim Your Seller Account
Forged Steel 90-Degree Elbows Class 3000 Socket-Weld, 1/2" NPS
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your piping system with our Forged Steel 90-Degree Elbows, designed for durability and precision. With a Socket Diameter of 22mm and a Bore Diameter of 15mm | 17mm, these elbows ensure secure connections and efficient flow. The minimum Socket Depth of 10mm meets stringent industry standards, while the 16mm Dimension ensures compatibility with various systems. Weighing 23kg per 100 pieces, these elbows are ideal for industrial applications requiring high-performance fittings.

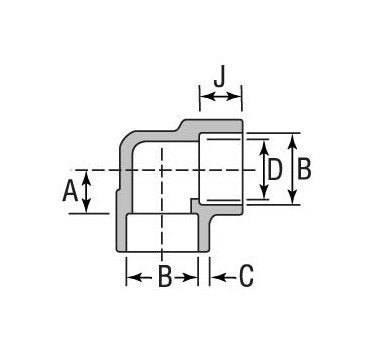

Product Specifications
Specifications Bore Diameter D
15 mm | 17 mm
Specifications Dimension A Nominal
16 mm
Specifications Dimension C Min
4 mm
Specifications Dn
15
Specifications Minimum Socket Depth J
10 mm
Specifications Nps
1/2
Specifications Socket Diameter B
22 mm
Specifications Weight100 Pieces
23 kg
